RODE NT1000

RØDE NT1000 – a versatile large-diaphragm studio condenser microphone featuring the HF2 1-inch gold-sputtered capsule with ultra-low self-noise of just 6 dBA and transformerless circuitry. Designed for exceptional performance when recording vocals and instruments, with cardioid polar pattern, full frequency response from 20 Hz to 20 kHz, and maximum SPL of 140 dB. Internal capsule shock mounting minimizes handling noise. Includes RM2 ring-mount stand adapter and ZP1 padded zip pouch.

The NT1000 delivers stunning detail and clarity on everything from vocals to piano to drum overheads, making it a true workhorse studio microphone. At its heart is the HF2 externally-biased true condenser capsule – a 1-inch edge-terminated design with gold-plated diaphragm and metallized membrane. The same capsule found in the acclaimed NTK tube microphone, mounted in a rubber harness that provides isolation from mechanical vibration. Voiced for versatility, it has been widely praised as the ultimate microphone for grand piano and drum overhead applications.

Advanced unity-gain closed-loop impedance converter with JFET input and bipolar buffering delivers exceptional transparency and signal integrity. The transformerless surface-mount circuitry achieves an impressive signal-to-noise ratio of 88 dB while maintaining an ultra-low equivalent noise level of just 6 dBA – making it one of the quietest microphones in its class. With 140 dB maximum SPL handling and 134 dB dynamic range, the NT1000 can capture both delicate quiet passages and powerful loud sources without distortion. The frequency response shows presence peaks at approximately 5 kHz and 12 kHz, providing clarity and air while maintaining a smooth, detailed character. Built with heavy-duty cast metal construction featuring satin nickel finish and high-strength welded, heat-treated mesh head for professional durability. The cardioid polar pattern effectively minimizes off-axis noise from monitors, instruments, and room ambiance. Side-address design optimizes positioning for vocal and instrument recording. Compatible with standard 24V or 48V phantom power. Designed and manufactured in RØDE's Sydney, Australia facilities with 10-year extended warranty available upon registration.

KEY FEATURES

• HF2 1-inch (25mm) gold-sputtered capsule
• True condenser design (externally biased)
• Ultra-low self-noise: 6 dBA
• Excellent signal-to-noise ratio: 88 dB
• Wide dynamic range: 134 dB
• Maximum SPL: 140 dB
• Cardioid polar pattern
• Full frequency response: 20 Hz to 20 kHz
• Transformerless surface-mount circuitry
• Unity-gain closed-loop impedance converter
• JFET input with bipolar buffering
• Internal capsule shock mounting
• Gold-plated diaphragm
• Side-address design
• High sensitivity: -36 dB re 1V/Pa (16 mV @ 94 dB SPL)
• Low output impedance: 100 Ω
• Maximum output level: +13 dBu
• Heavy-duty cast metal body
• Durable satin nickel finish
• High-strength welded and heat-treated mesh head
• Compatible with P24 or P48 phantom power
• Professional 3-pin XLR output
• RM2 ring-mount stand adapter included
• ZP1 padded zip pouch included
• Designed and manufactured in Sydney, Australia
• 10-year extended warranty (with registration)

TECHNICAL SPECIFICATIONS

• Acoustic Principle: Pressure gradient
• Capsule Type: HF2 1-inch externally-biased true condenser
• Capsule Design: Edge-terminated with gold-plated diaphragm
• Polar Pattern: Cardioid
• Address Type: Side address
• Frequency Response: 20 Hz to 20 kHz (±6 dB)
• Frequency Characteristics: Presence peaks at ~5 kHz and ~12 kHz
• Sensitivity: -36 dB re 1V/Pa (16 mV @ 94 dB SPL) ±2 dB @ 1 kHz
• Output Impedance: 100 Ω (50 Ω per leg)
• Self-Noise (Equivalent Noise Level): 6 dBA (A-weighted per IEC268-15)
• Signal-to-Noise Ratio: 88 dB (A-weighted per IEC268-15)
• Maximum SPL: 140 dB SPL @ 1 kHz, 1% THD into 1 kΩ load
• Maximum Output Level: +13 dBu @ 1 kHz, 1% THD into 1 kΩ load
• Dynamic Range: 134 dB (A-weighted per IEC268-15)
• Active Electronics:
• Unity-gain closed-loop impedance converter
• JFET input with bipolar buffering
• Transformerless surface-mount technology
• Power Requirements:
• P24 or P48 phantom power
• Current draw: 6 mA @ P48 (35V-53V)

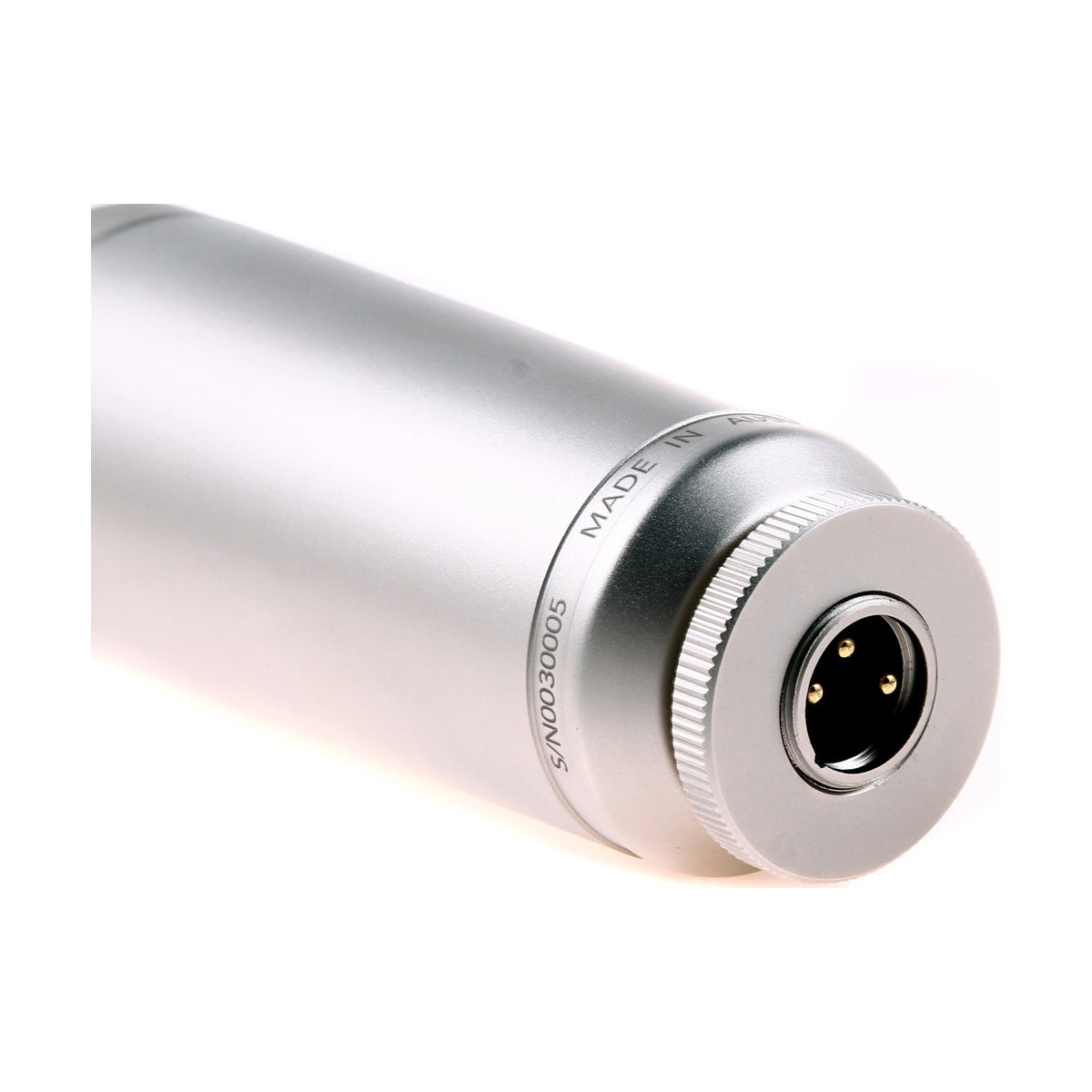

• Output Connection: 3-pin XLR balanced
• Internal Features: Internal capsule shock mounting
• Construction:
• Heavy-duty cast metal body
• Satin nickel finish

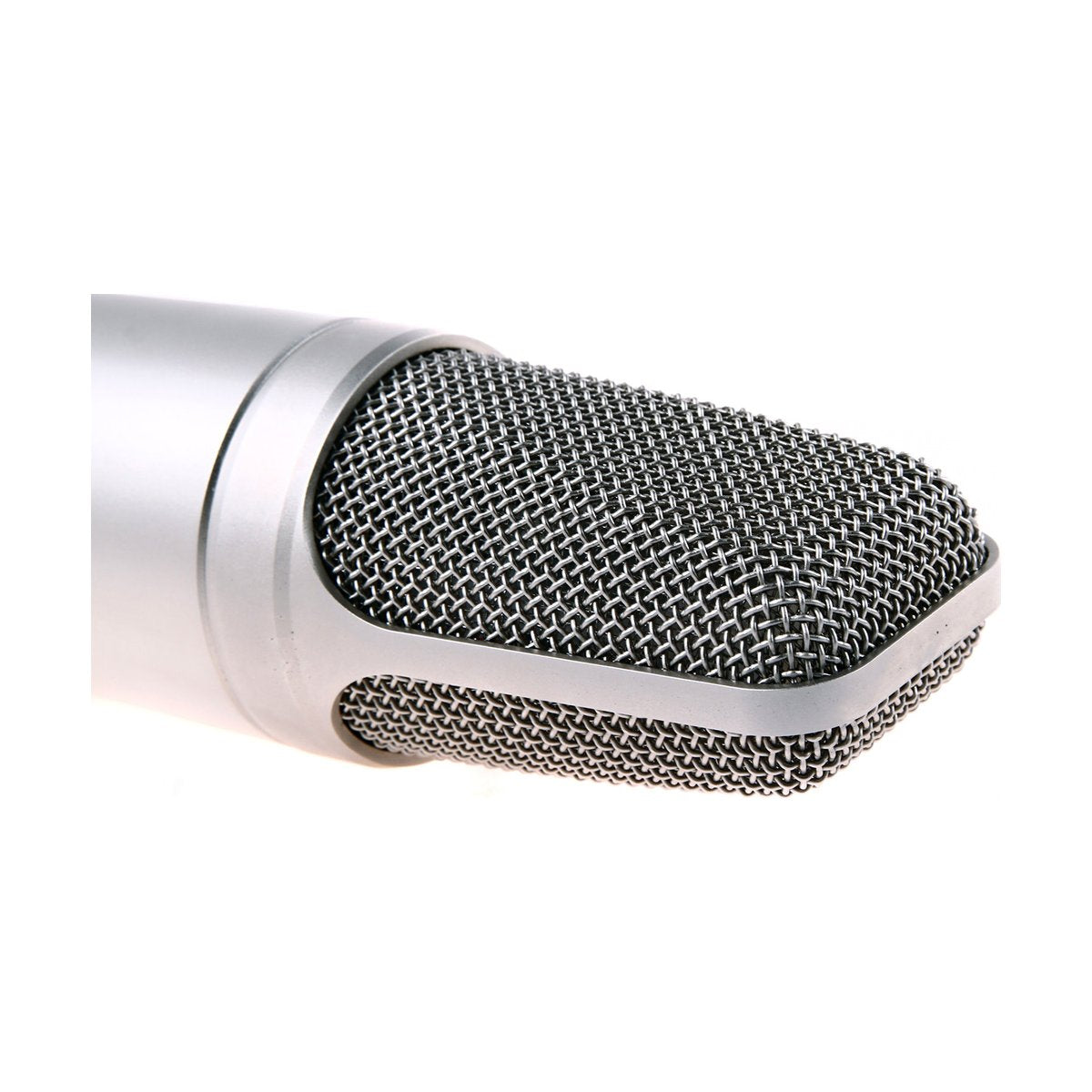

• High-strength welded and heat-treated mesh head
• Dimensions:
• Length: 54 mm (2.13")
• Width: 54 mm (2.13")
• Height: 209 mm (8.23")
• Weight:
• Microphone only: 682 g (1.50 lbs)
• Packed weight: 882 g (1.94 lbs)
• Warranty: 10-year extended warranty (registration required)
• Included Accessories:
• RM2 ring-mount stand adapter
• ZP1 padded zip pouch
• 3/8" to 5/8" thread adapter
• Designed and Manufactured: Sydney, Australia
