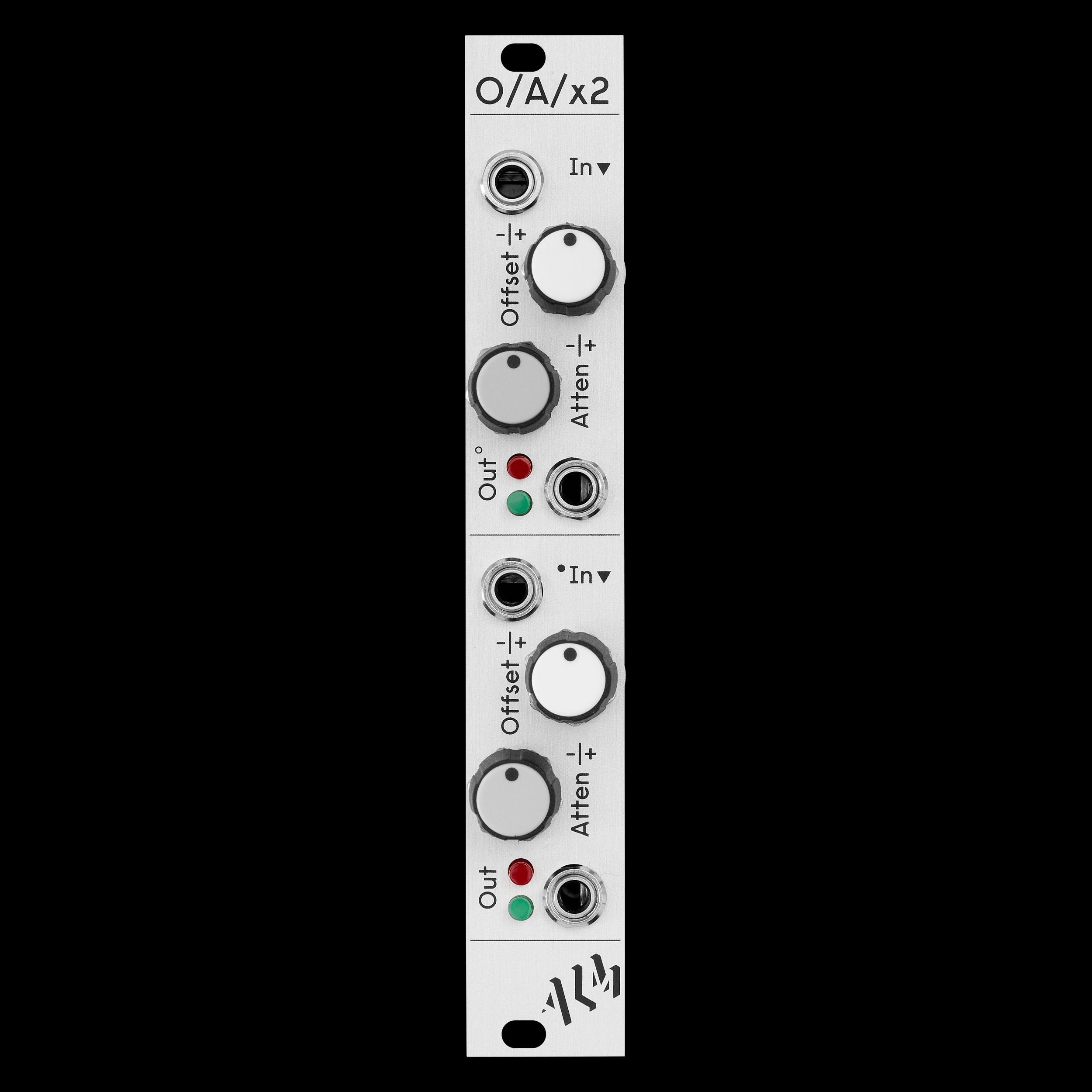

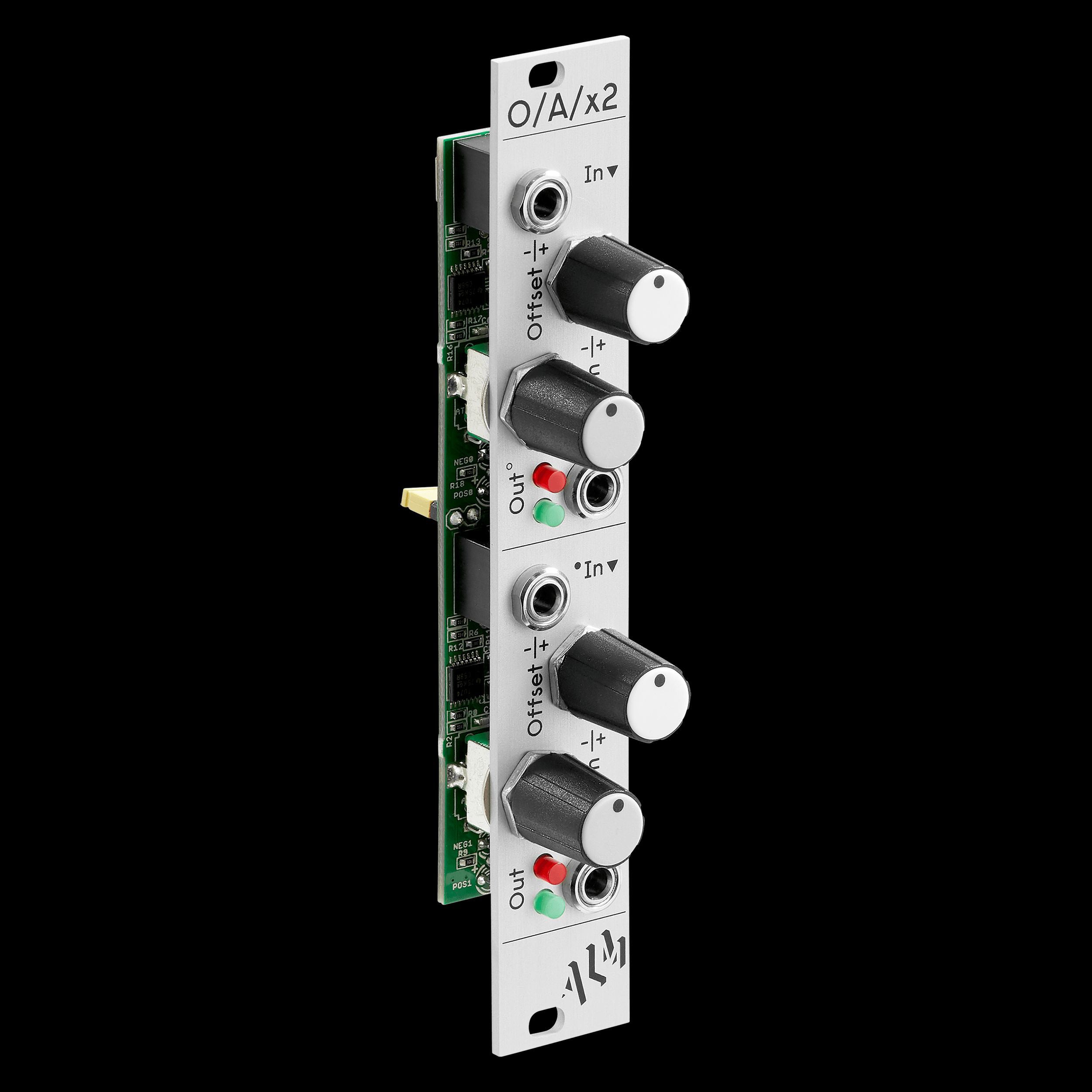

ALM Busy Circuits O / A / x2
‘O/A/x2’ is a dual channel attenuverter with each channel also including a bipolar voltage offset and LED monitoring. The module is primarily intended for fine grain flexible ‘editing’ of control signals (i.e changing the phase; level and DC offset of an LFO signal) but also has uses with audio signals such as attenuation; inversion and mixing.
Features- Dual channel.
- Attenuate and invert input signals.
- Additional +/- 8v DC Offset controls.
- LED indication of outgoing signal polarity and level.
- A jumper setting allows for the module to also be used as a simple mixer.
- Reverse polarity protection.
- Skiff friendly.
- Designed and Made in the UK.
- Boring but essential!
Supply: +12V ~50mA / -12V ~50mA
Size: 4HP
Depth: 32mm (including power header)
