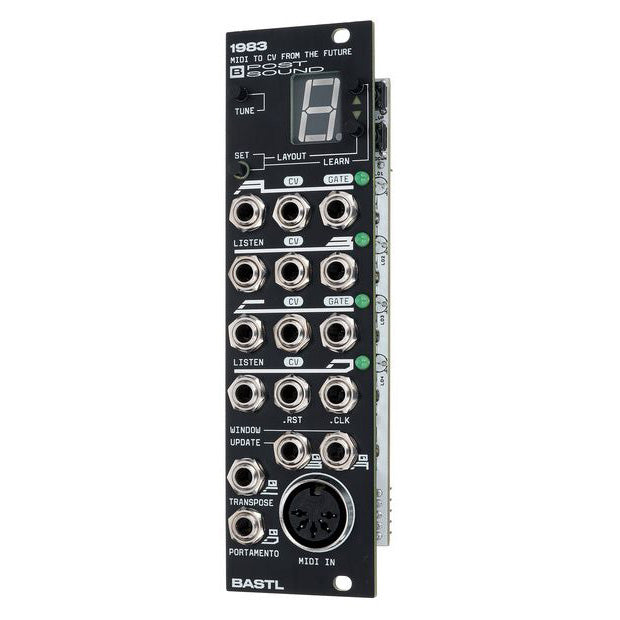

Eurorack Module
- Polyphonic MIDI to CV/Gate interface
- 4 Channels with CV and gate output that can be configured as desired (e.g. 4-voice polyphonic, 2x 2-voice polyphonic or 4x monophonic)
- CV input per channel enables automatic retuning of the connected oscillators
- Quantiser with programmable tone scale per channel
- MIDI CC and velocity support
- Micro-tuning functionality
- CV inputs for transpose, portamento and quantiser control
- MIDI clock and reset outputs with internal clock divider
- MIDI In (5-pin DIN)
- Power consumption: 60mA (+12V) / 20mA (-12V)
- Width: 7 U
- Depth: 24 mm
