D.W. Fearn

D.W. Fearn VPF

979,00 zł
ZAMÓWIENIE SPECJALNE

W tym VAT. Dostawa obliczana przy kasie

SKU: 54821
Ilość:
Kup na raty: 29,91 zł/mies (36 mies.) Szczegóły
Kalkulator dostępny przy płatności.

Ten produkt jest dostępny tylko na zamówienie. Prosimy o kontakt w celu uzyskania szczegółów. Skontaktuje się z nami

D.W. Fearn VMC is a professional audio mastering equipment package that consists of the VT-5 equalizer, the VT-7 compressor, and a stylish VPF panel for the ventilation of these devices.

VMC is a Mix Bus Mastering Combination, consisting of a 2-channel stereo vacuum tube equalizer D.W. Fearn VT-5 and a 2-channel stereo vacuum tube compressor D.W. Fearn VT-7. This set is designed to create the final tone and dynamics of your music. The devices are user-friendly and allow you to quickly achieve the desired sound.

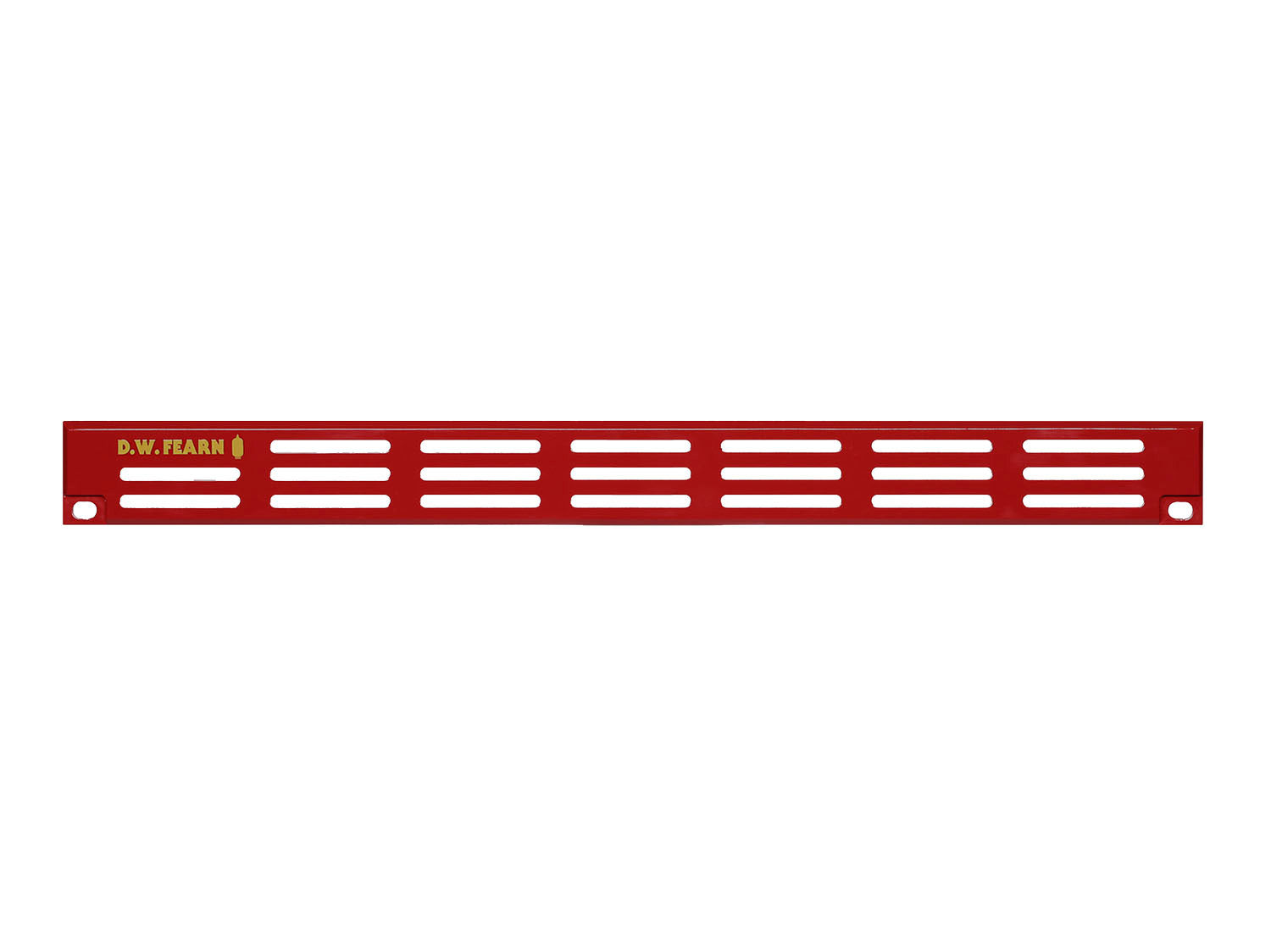

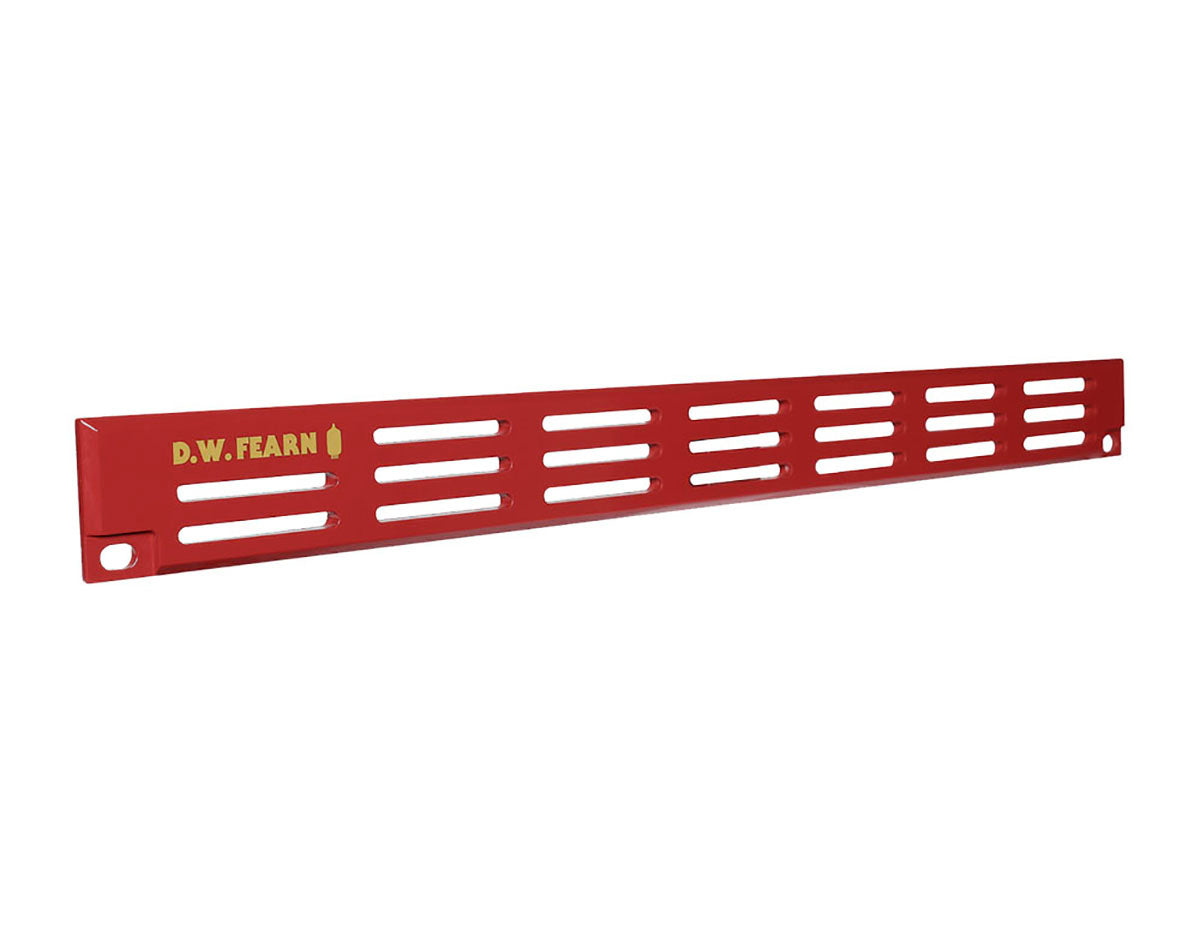

The package also includes a stylish ventilated rack panel with VPF finish, made from the same 1/4-inch thick aluminum as the front panels of the VT-5 and VT-7.

VMC Features

  • Includes D.W. Fearn VT-5 and VT-7 along with VPF, matching vented rack panel
  • Designed by D.W. Fearn
  • All-tube signal path
  • Handcrafted in the USA
  • 7-year warranty (90 days for vacuum tubes)

VT-5 Specifications

  • Input: 600 ohms
  • Input Load Impedance: 40k ohms
  • Minimum Input Level: -20 dBm nominal
  • Maximum Input Level @ 20 cps: +25 dB 0 dB
  • Gain: ± 0.5 dB 20 cps to 20 kc -3dB @ 0.5 cps & 80 kc
  • Frequency Response: <0.10% 20 cps to 20 kc
  • Intermodulation Distortion SMPTE: <0.80%
  • Signal to Noise Ratio: 82 dB minimum low-Z, transformer balanced
  • Output: +22 dBm unterminated
  • Maximum Output Level: 120 or 220 VAC 50/60Hz, 85 W

    • D.W. Fearn VT-7 Specifications

    • Input 600 ohm source (nominal) balanced or unbalanced
    • Input Load Impedance 32k ohms, transformer balanced bridging
    • Nominal Input Level +4 dBm
    • Maximum Input Level @ 20 cps +25 dBm
    • Gain unity to +15dB
    • Frequency Response ± 0.2 dB 20 cps to 20 kc ± 0.5 dB 11 cps to 28 kc -3 dB @ 0.5 cps & 65 kc
    • THD + Noise <0.05% 20 cps to 20 kc
    • Signal to Noise Ratio 78 dB minimum
    • Output low-Z, transformer balanced
    • Output source impedance 115 ohms
    • Maximum Output Level +22 dBm into bridging input balanced or unbalanced
    • Gain Reduction Range 0 to 20dB
    • Power Requirements 120 or 220 VAC 50/60Hz, 85 W
    • Dimensions 19” (48.26cm) W 5.25” (13.34cm) H 13” (22.9cm) D
    • Weight 22 lbs (9.55 kg)
