ALM Busy Circuits
ALM Busy Circuits Akemies Castle
Kup na raty: 86,90 zł/mies (36 mies.) Szczegóły
Kalkulator dostępny przy płatności.

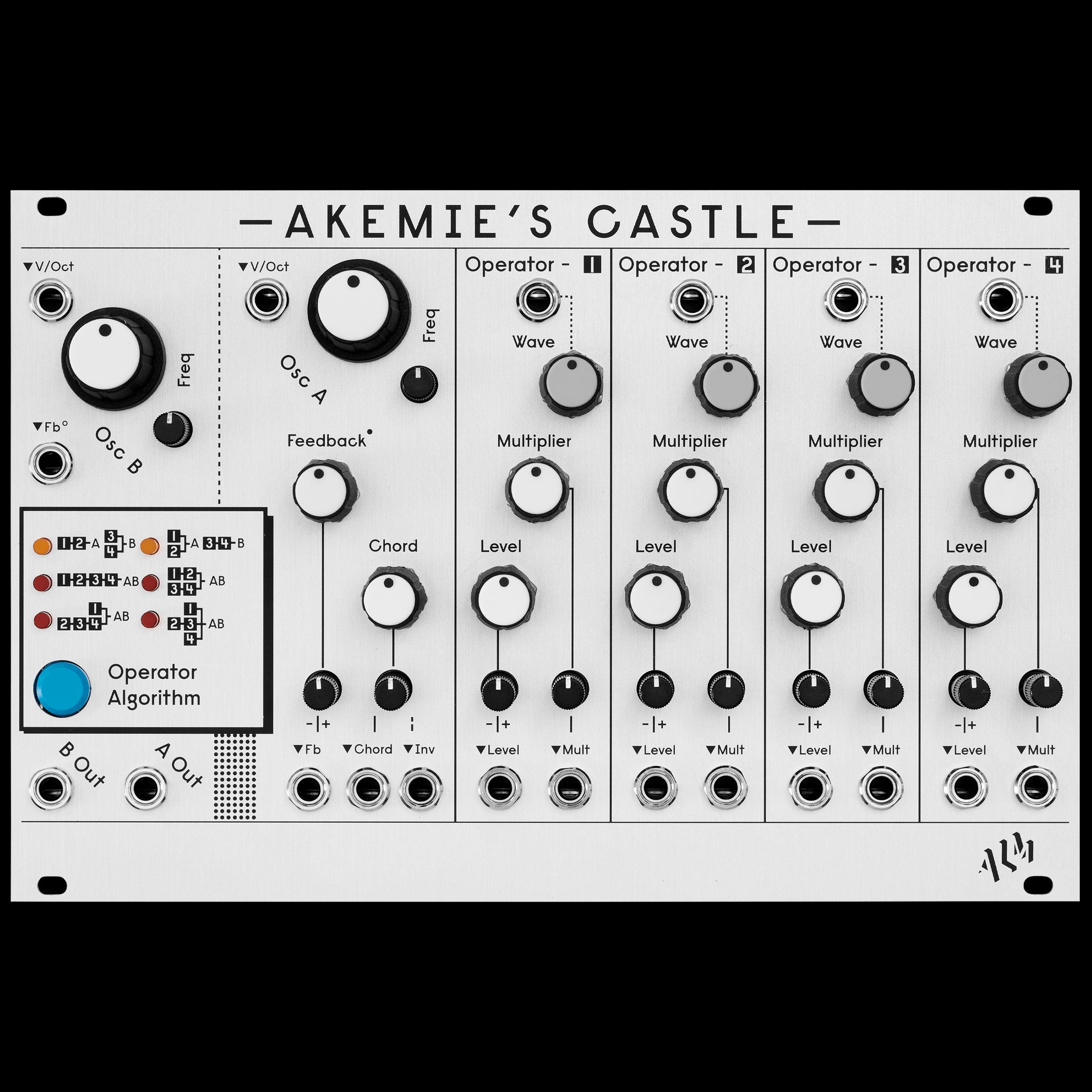

‘Akemie’s Castle’ is a dual voltage controlled oscillator with authentic 4 Operator digital FM using ‘new-old-stock’ Yamaha IC’s for audio signal generation.
Each of the 4 operators feature independent waveform selection; frequency multiplier and level control via direct panel operation and voltage control. Operators can be combined in various ways across both oscillators; which together with independent feedback control on each VCO; offer an extremely wide palette of sounds.
Oscillator A also features a chord mode providing a range of up to 5 voice chords and voltage controlled inversion.
Features- Authentic digital FM sound for Eurorack with never before seen levels of control
- Dual independent and combine-able outputs
- 4 Operator / 6 Algorithm / 8 Waveform / Feedback FM
- Rich Chord mode producing up to 5 voice chords with inversion also
- Reverse polarity protection.
- Skiff friendly.
- Designed and Made in the UK.
Supply: +12V ~120mA / -12V ~60mA
Size: 38HP
Depth: 32mm (including power header)
