ALM Busy Circuits PE-1

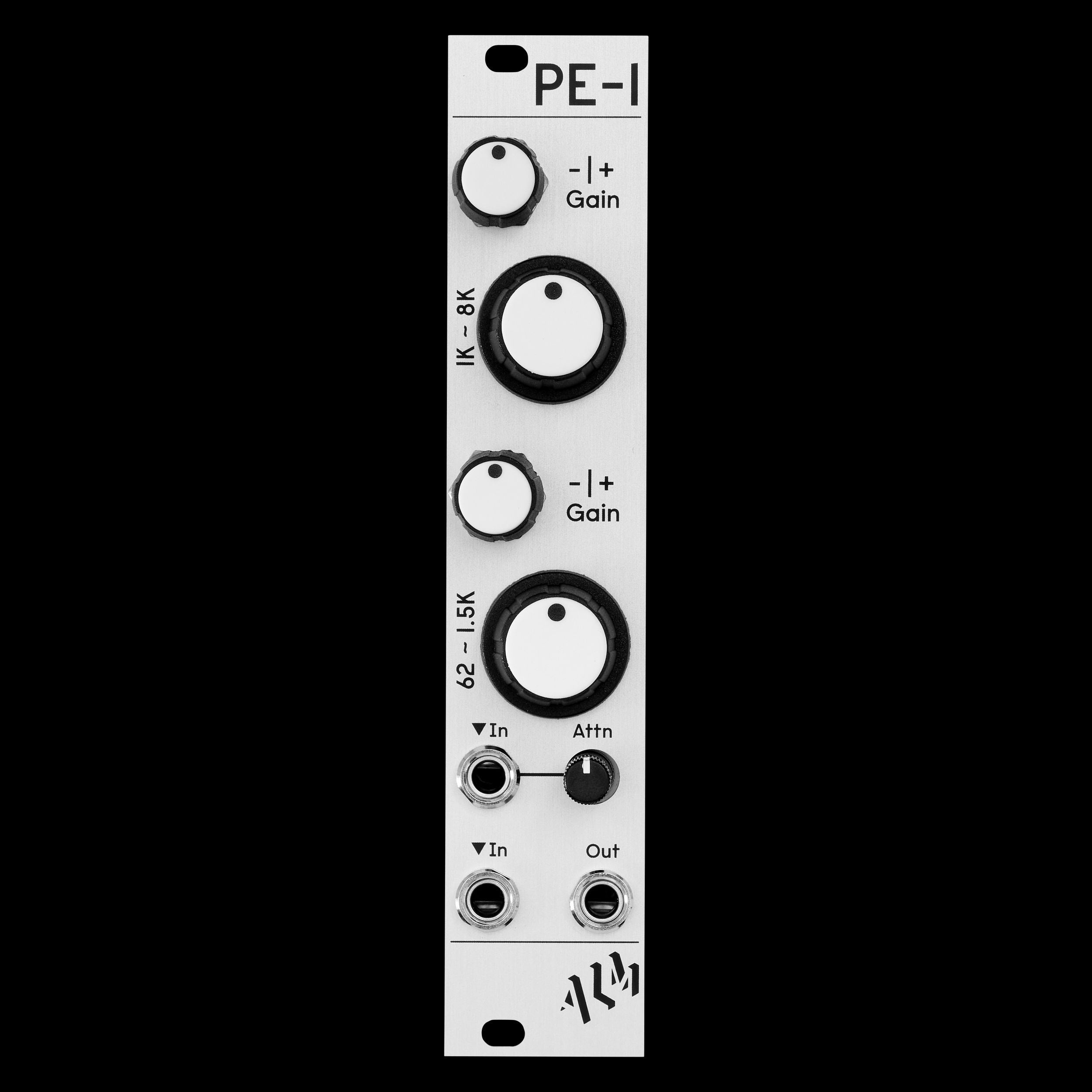

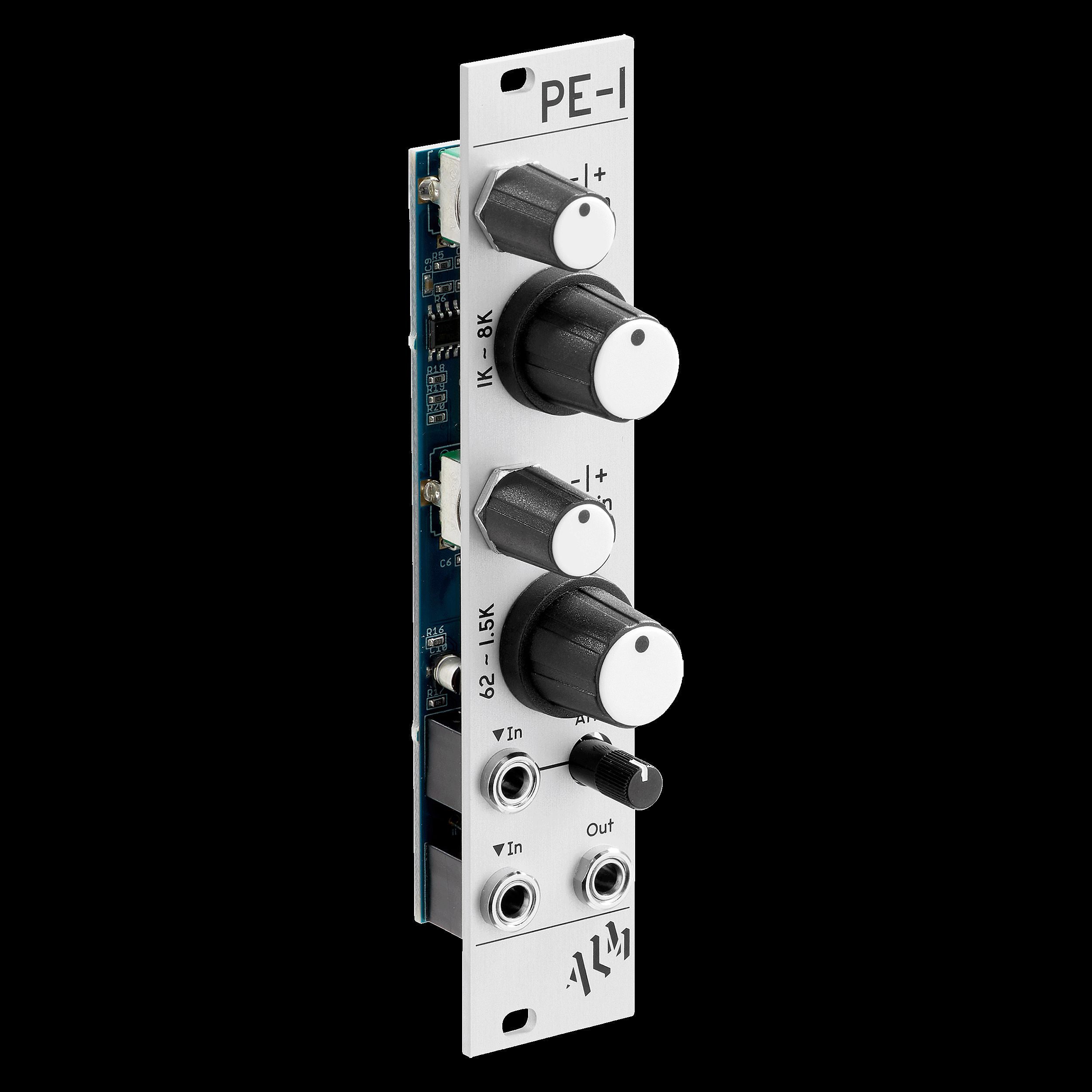

‘PE-1’ is a dual band parametric EQ and simple two channel mixer. Two control sections provide a sweepable cut or boost to a selectable upper and lower frequency band. The module has two ac-coupled audio inputs; one of which has an attenuation control for basic mixing; and a single audio output.

The ‘PE-1’ is inspired by the EQ circuits used in early ‘Portastudio’ type 4 track tape mixers. Warm up a digital source; fine control a live performance; extend a mixer; tweak a feedback loop – there are many uses for this great sounding EQ.

• Provides +/-12db of boost and cut across 2 selected frequency bands
• Dual input with single attenuation control
• Reverse polarity protection.
• Skiff friendly.
• Designed and Made in the UK.

Supply: +12V 10mA / -12V 10mA

Size: 5HP

Depth: 32mm (including power header)
