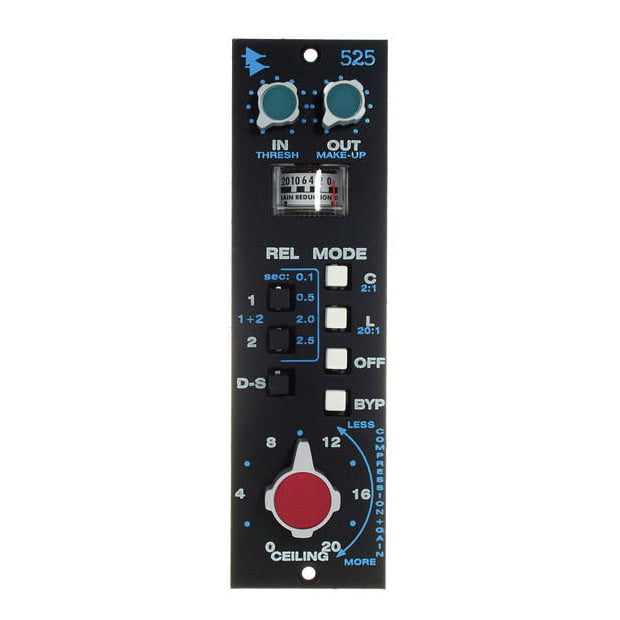

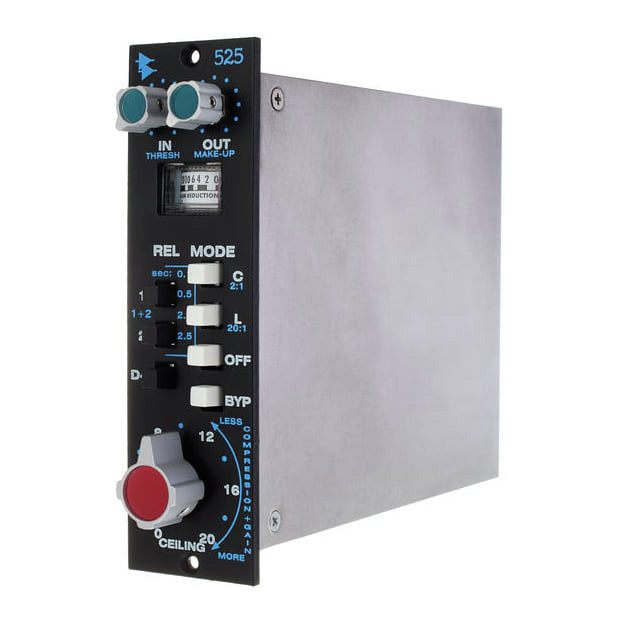

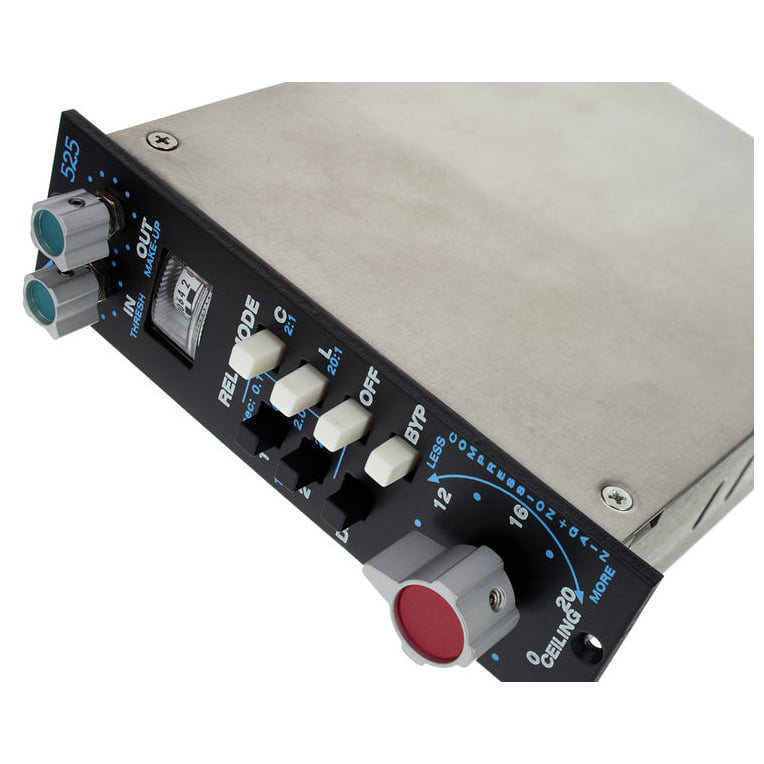

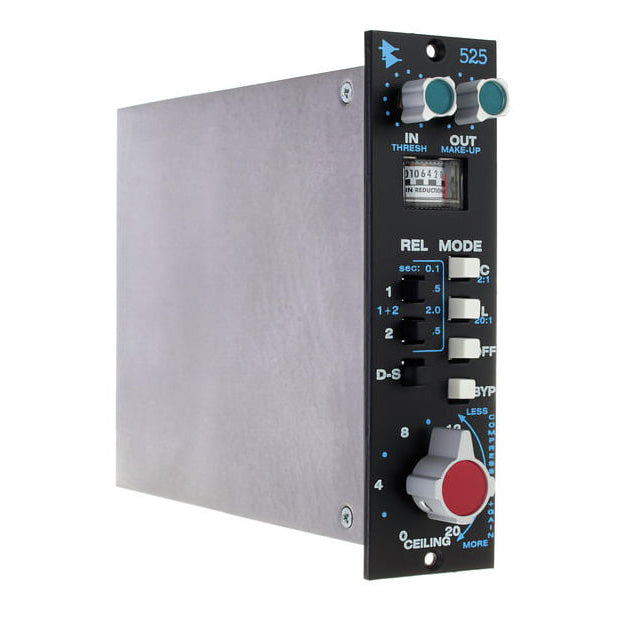

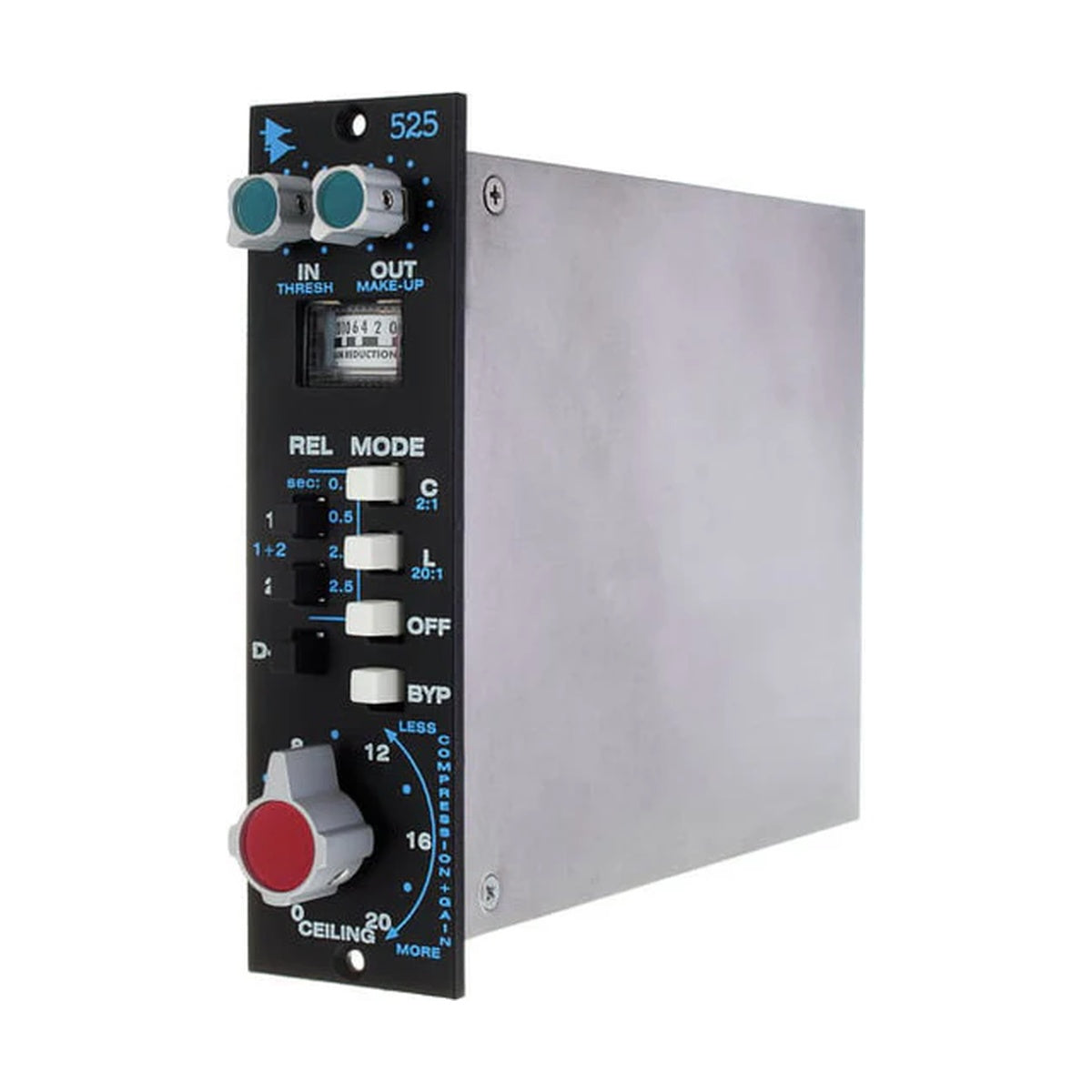

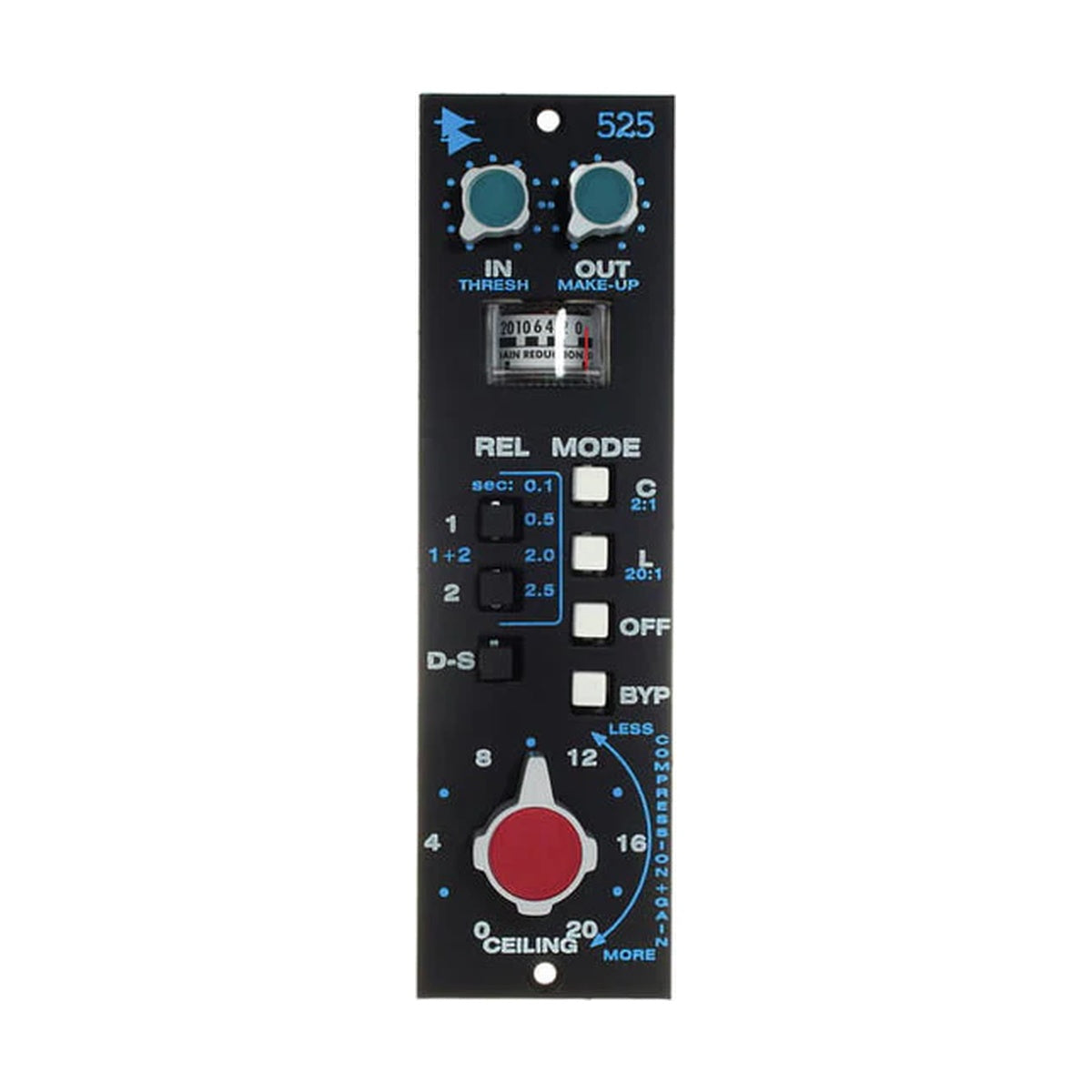

API Audio 525 Compressor – dokładna re-edycja kompresora/limitera feedback z lat 70. do racków 500 Series. Używa op-ampów 2510/2520 dla niezawodności. Variable threshold/output, "Ceiling" łączy threshold/makeup gain. Ratio 2:1 (kompresja)/20:1 (limit), fixed attack (15μs), 4 auto release (0.1/0.5/1.5/2.0s). De-Ess filtruje sibilance/pop.
Hard-wire bypass, balanced I/O, linkable. VU meter GR, do tracking/mixdown/program.
GŁÓWNE CECHY
- Feedback compressor/limiter
- "Ceiling" fine-tune
- De-Ess filter
- 4 release modes
- Hard-wire bypass
- Linkable channels
- Discrete circuit
SPECYFIKACJA TECHNICZNA
- Ratios: 2:1/20:1
- Attack: 15μs fixed
- Release: 0.1/0.5/1.5/2.0s auto
- Format: 500 Series single-slot
- Power: 500 Series slot
- Dimensions: Standard module
