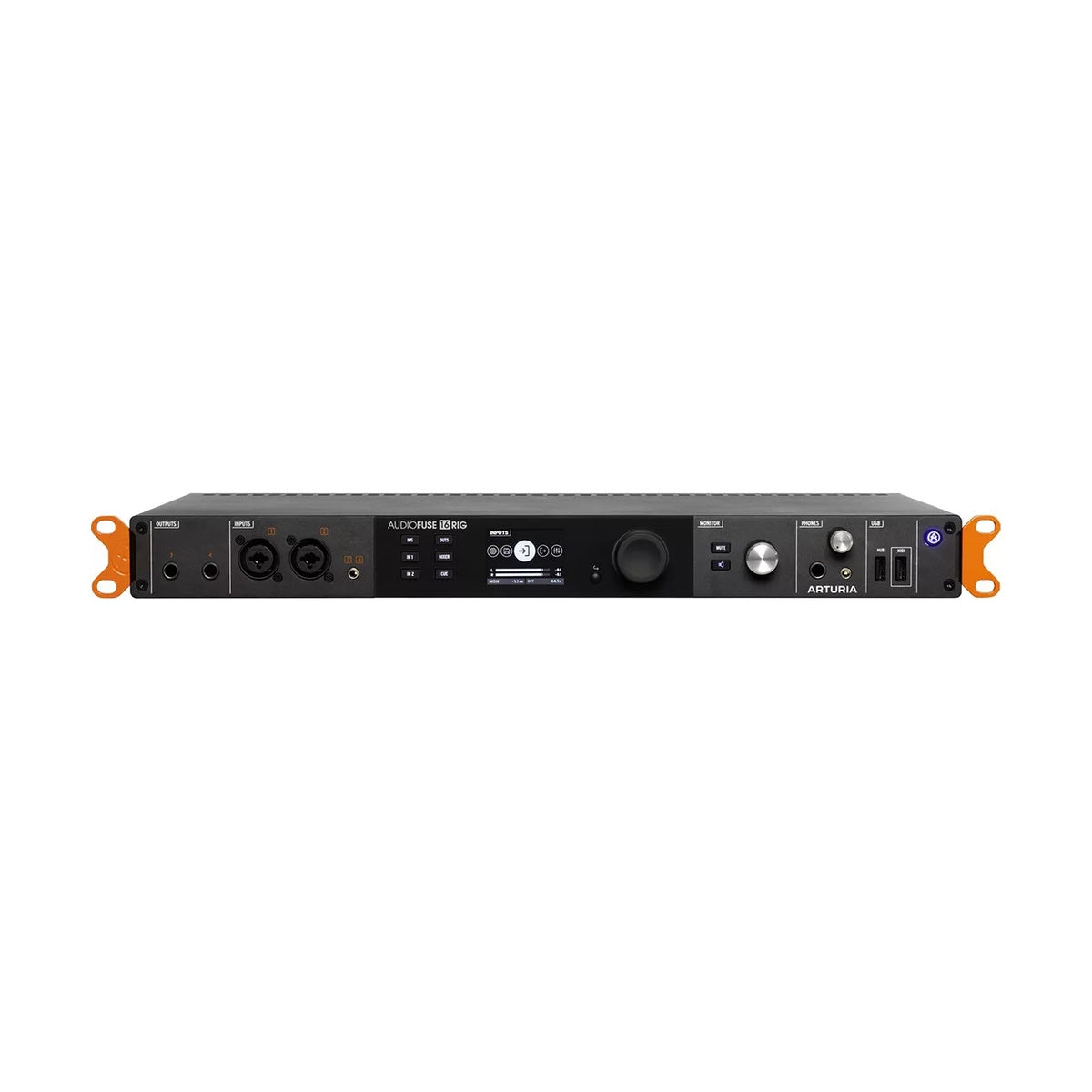

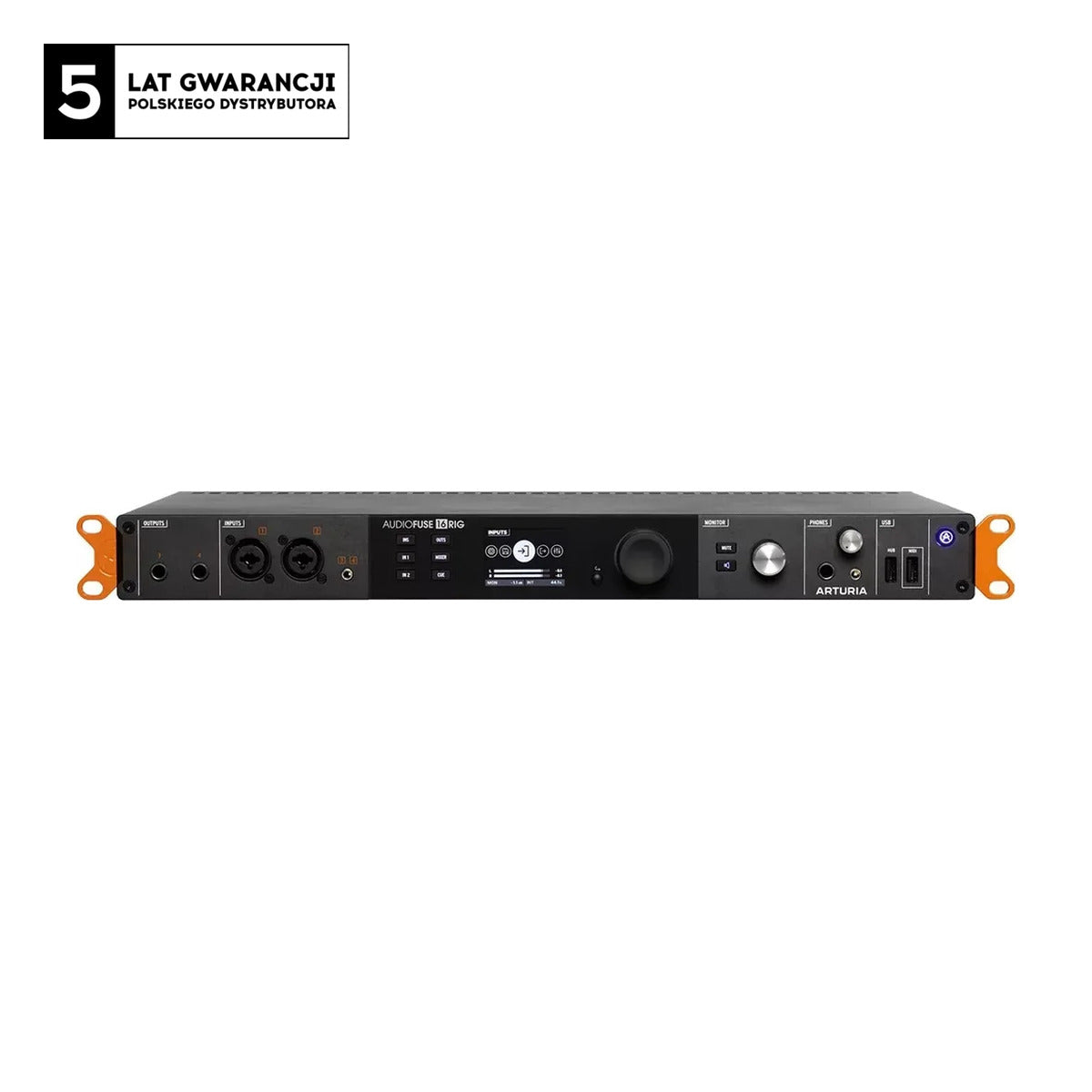

USB Audio Interface with USB-C Port
- Combines connectivity with flexible configuration options
- To connect a full synth studio, complex live audio routing, DAW recording and more
- 24-bit / 96kHz
- 16 Analog input channels and 12 analog output channels
- Separate front stereo input (input 3/4) for connecting tablets, smartphones or synths
- Dual ADAT I/O ports with word clock synchronization
- Low Latency DSP Mixer
- Standalone audio and MIDI functionality
- Dedicated monitor volume control with mute and custom buttons to control studio monitors
- Custom buttons configurable (mono, dim or alternate speaker)
- Headphone volume control
- Reamp function
- Pad switch for all line inputs
- Colour display with rotary and push encoders
- 6 Direct Access buttons and Back/Home buttons for easy navigation
- USB hub functionality with front and rear USB ports for connecting peripherals
- Load and recall presets for quick setup (e.g. studio, live performance, streaming, etc.)
- Configurable for desktop or rackmount use
- Format: 19''/ 1U
- Dimensions (W x D x H): 440 x 45 x 260 mm
- Weight: approx. 4.5 kg
- Incl. AudioFuse Creative Suite
- Contents of the delivery: quick start guide, power cable, USB-C to USB-C cable, USB-C to USB-A cable, registration card as well as detachable rack ears for rack mounting

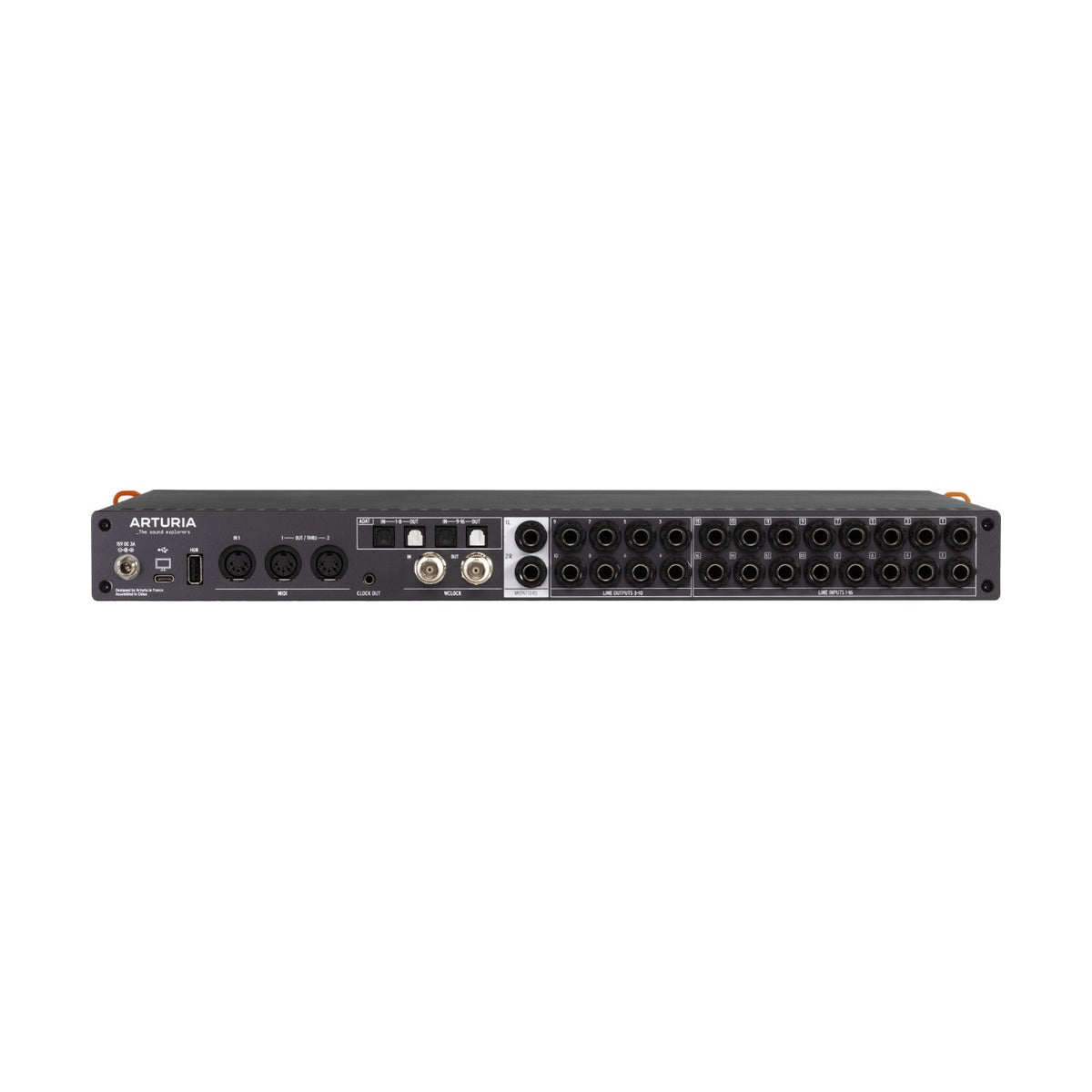

Analogue inputs
- 2 Mic / Line / Instrument combo inputs: XLR / 6.3 mm jack
- 16 Individually switchable line inputs (+4 dBu / -10 dBv): 6.3 mm TRS jack
- 1 Stereo line input: 3.5 mm jack
Analogue outputs:
- 8 DC-coupled line outputs: 6.3 mm TRS jack
- 2 Monitor outputs: 6.3 mm TRS jack - front mirrored: Output 3&4
- 1 Headphone output: 6.3 mm TRS jack
- 1 Headphone output: 3.5 mm jack
Digital inputs/outputs:
- Dual ADAT I/O for up to 16 channels I/O at 48 kHz: 2x input / 2x output
- Word Clock I/O: BNC
- 1 MIDI-In/Out/Thru: 5-pin DIN
- 1 MIDI Clock-Out: 3.5 mm jack
- 1 MIDI host USB port on the front for USB MIDI controllers
