D.W. Fearn
D.W. Fearn VT-2
Ten produkt jest dostępny tylko na zamówienie. Prosimy o kontakt w celu uzyskania szczegółów. Skontaktuje się z nami

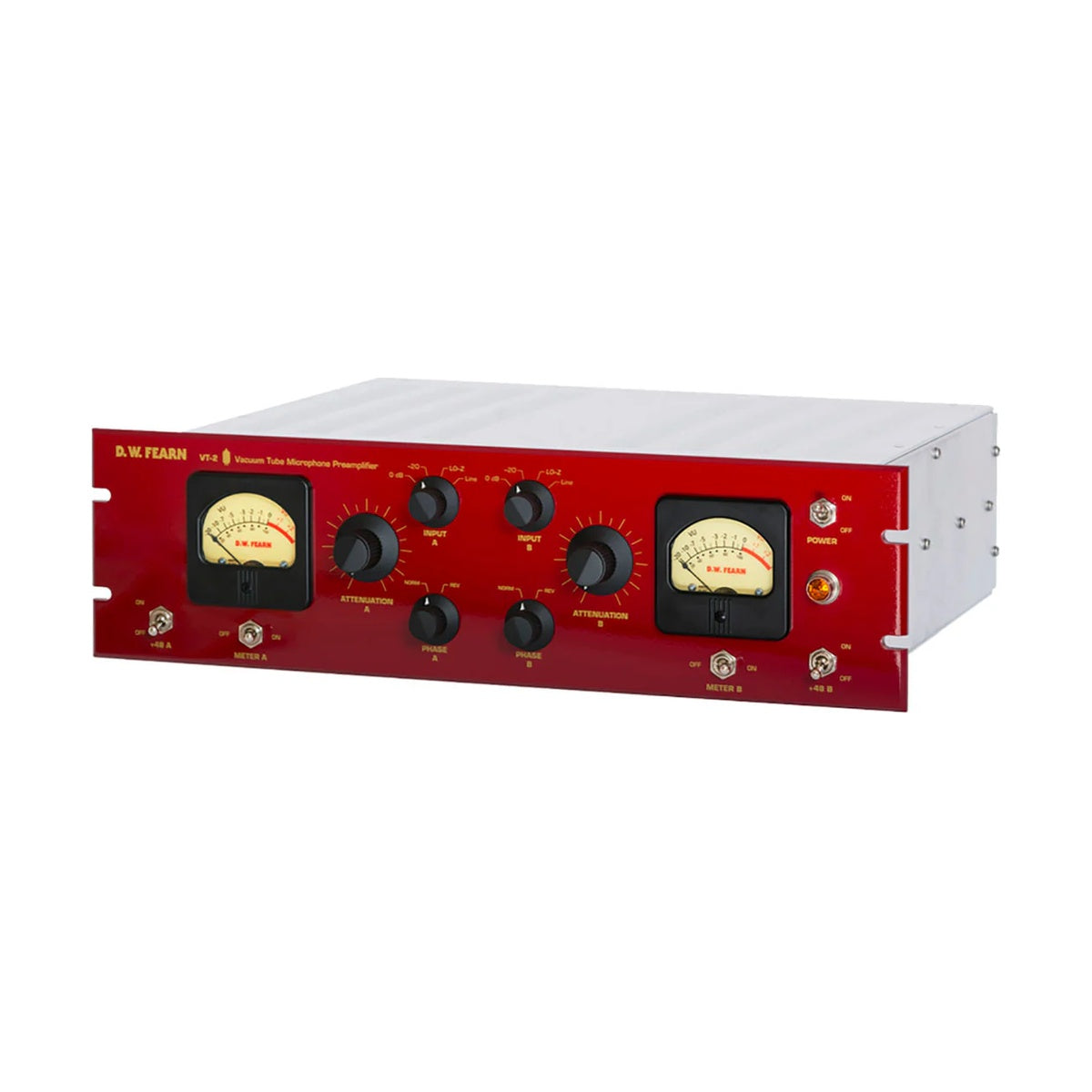

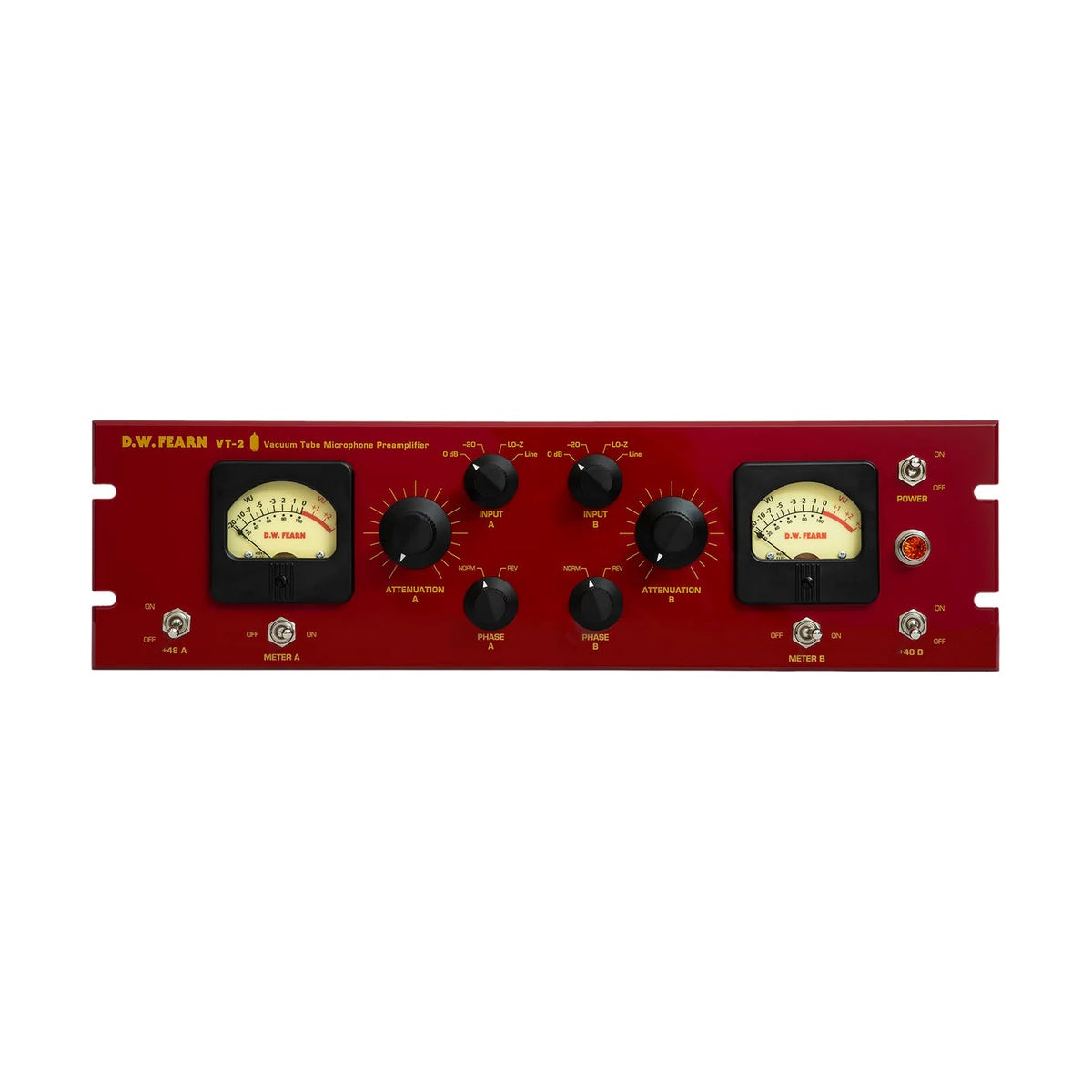

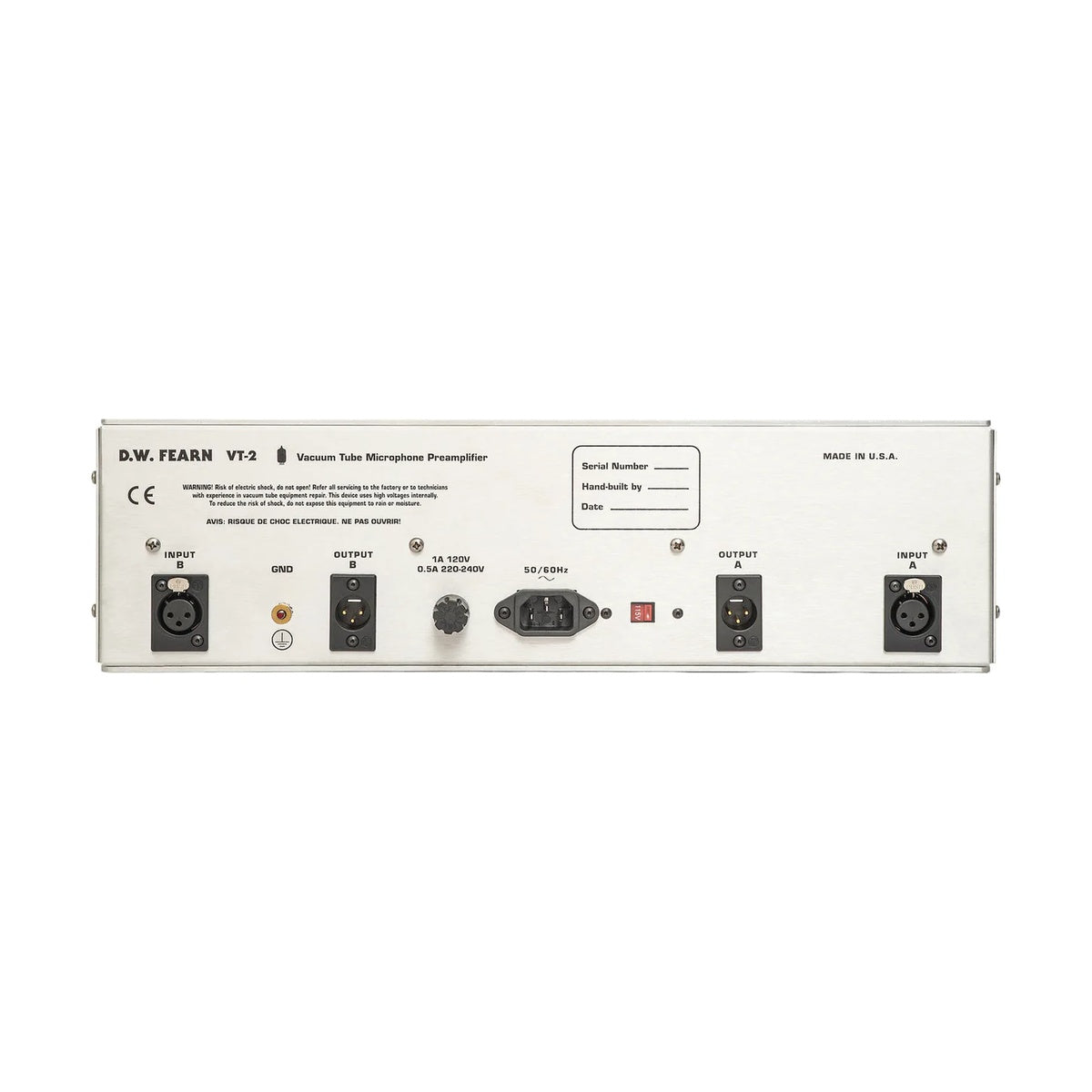

D.W. Fearn VT-2 is a Dual Channel Vacuum Tube Microphone Preamplifier with 2 x XLR Inputs, 2 x XLR Outputs, GND lift, rack mountable.<2p>
The VT-2 is designed to amplify signals while providing ultra-high clarity. The preamplifier VT-2 is handcrafted with a thick aluminum chassis using point-to-point wiring. The active circuit consists of 4 Class A triode amplifier sections (with two tubes) in each channel.
The VT-2 preamplifier also features a built-in switchable 43 dB pad, allowing it to be connected to the master bus at line level during mixing and mastering to provide the final product with the unique sound signature of D.W. Fearn.
VT-2 Features
- All vacuum-tube design
- Lo-Z input position for superior performance with transformerless microphones
- Phase (polarity) reverse switch
- +48 volt phantom power (completely disconnected when off)
- Integrated, switchable 43 dB pad for Line Level processing
- Custom-design Jensen input and output transformers
- 20 dB input pad (switchable)
- True VU meters (amplifier isolated)
- All point-to-point audio wiring
- Gold input and output XLR connectors
- Polypropylene and polystyrene coupling capacitors
- All audio switching through gold-contact, sealed precision relays
- International operation on 100, 120, or 220 VAC, 50/60 Hz
- CE certified, RoHS-compliant
- +4 dBm output
- Conservatively rated precision components and rugged construction for stability and long life
VT-2 Specifications
- Input: 150 ohms
- Input Load Impedance: 1.5k ohms
- Minimum Input Level: -65 dBm nominal
- Maximum Input Level @ 20 cps: -30 dBm without pad, -5 dBm with 20 dB pad
- Gain: 53 dB
- Frequency Response: +/-0.25 dB 20 cps to 20 kc; -3 dB @ 0.5 cps and 55 kc
- THD+Noise: less than 0.25% 20 cps to 20 kc
- Intermodulation Distortion SMPTE: less than 0.02%
- Signal to Noise Ratio: 74 dB minimum
- Equivalent Input Noise: -124 dBm maximum
- Output: low-Z, transformer-balanced
- Maximum Output Level: +22 dBm, 20k ohm load
- Power Requirements: 100, 120, or 220 VAC, 50/60 Hz
- Dimensions: 19” (48.26 cm) W, 5.25” (13.34 cm) H, 14” (35.56 cm) D
