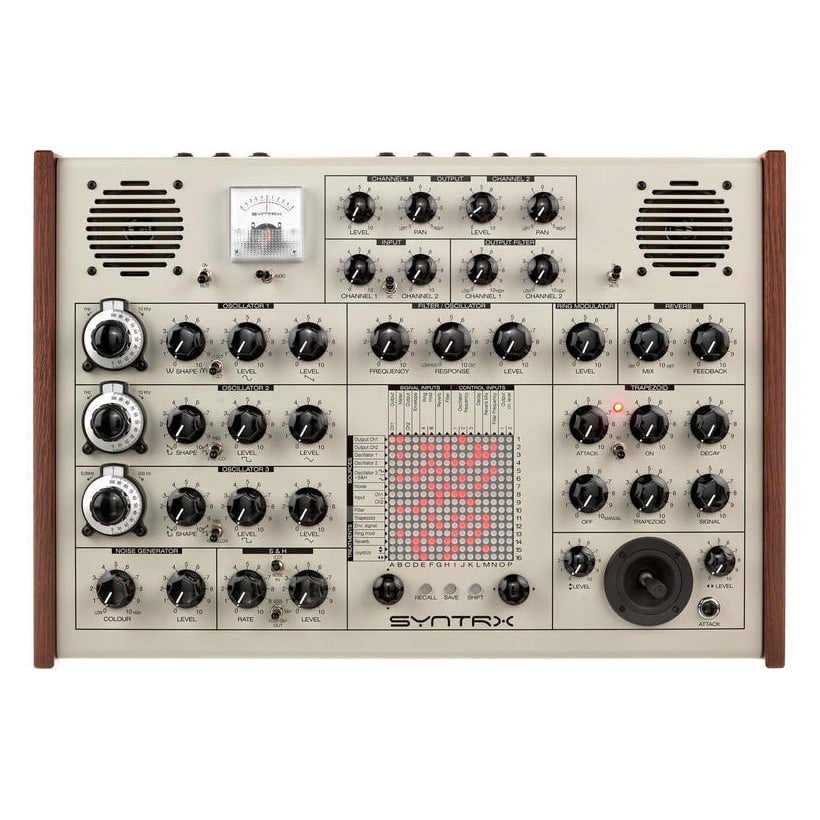

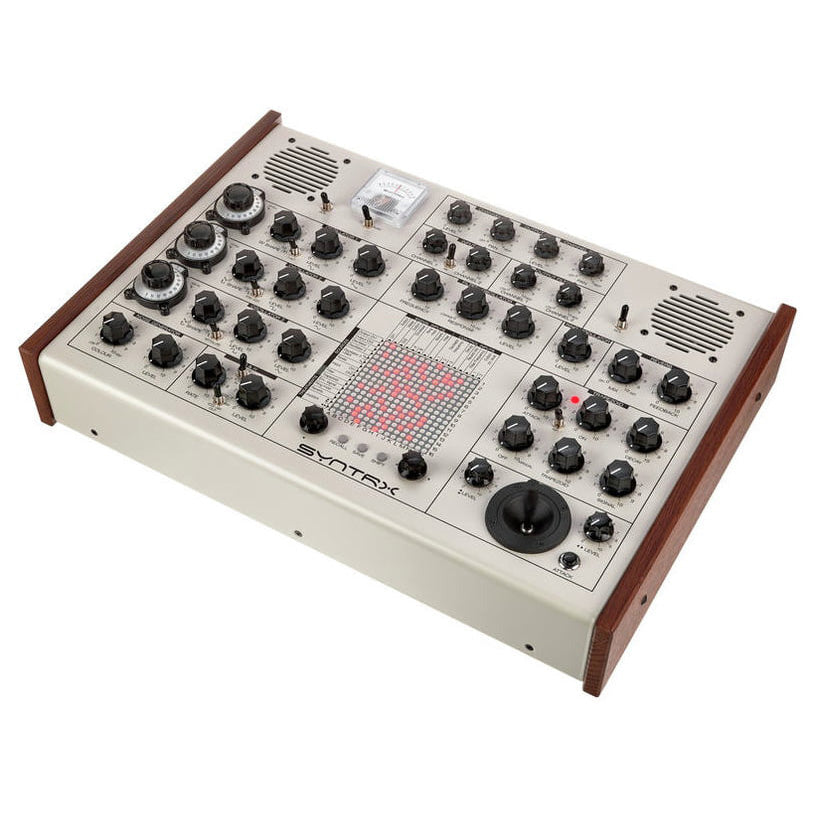

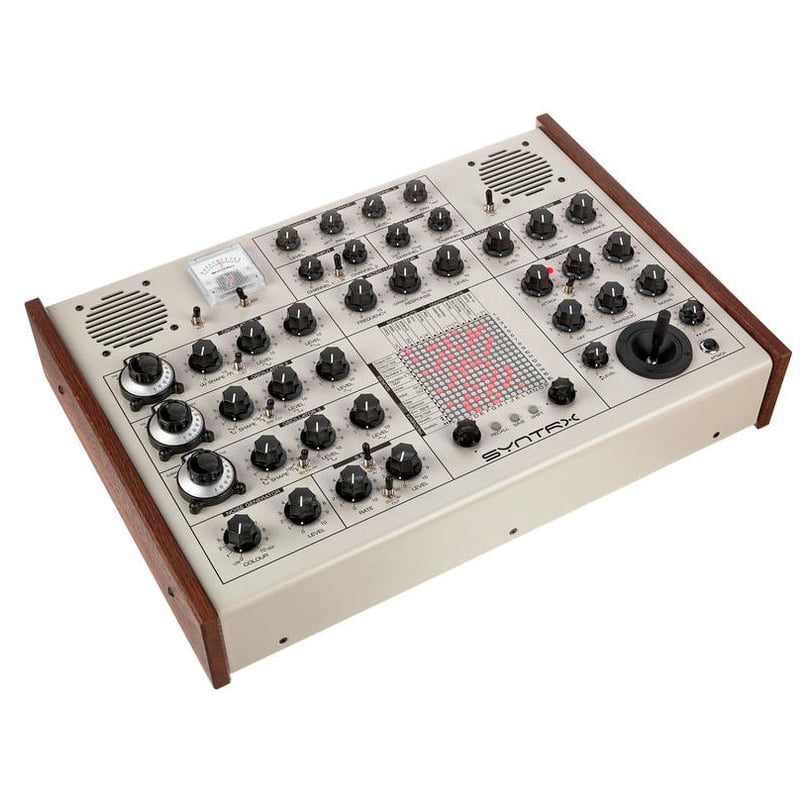

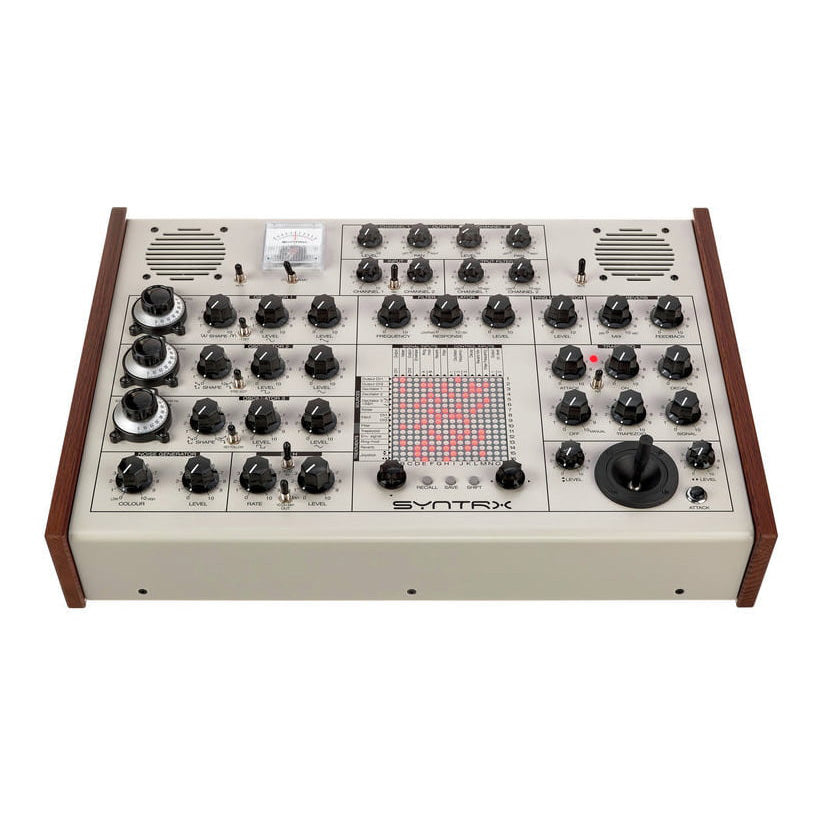

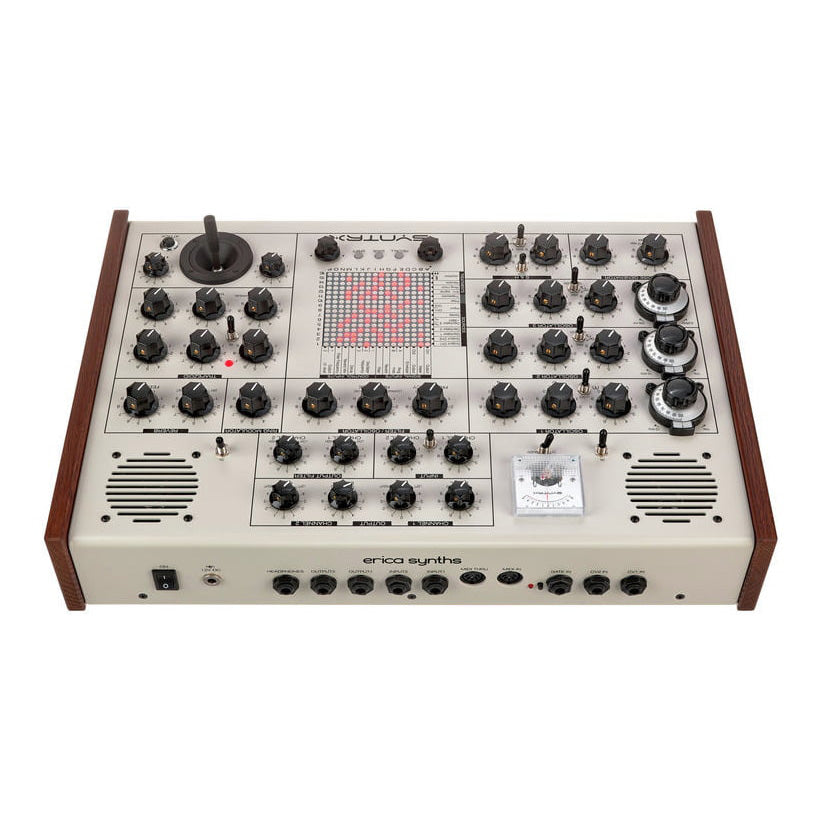

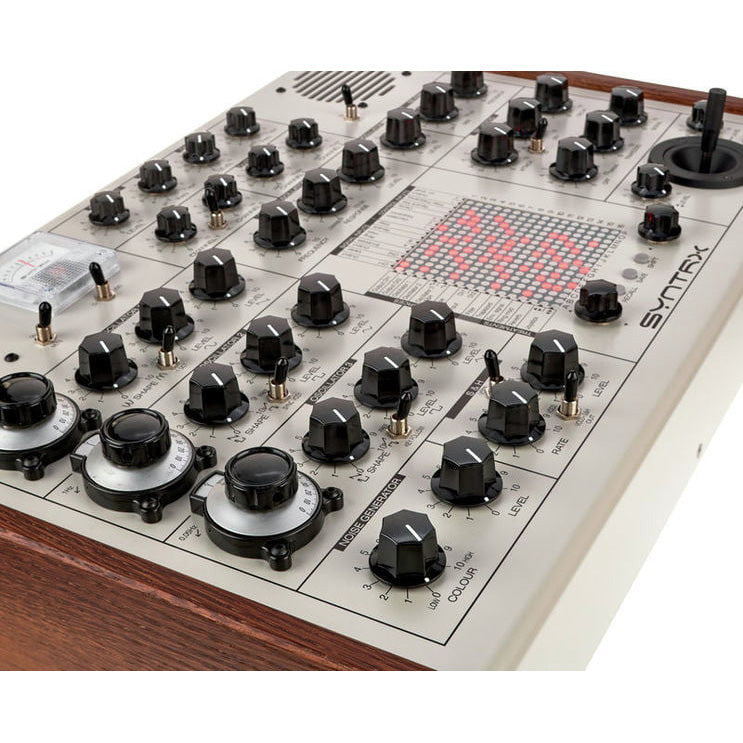

Erica Synths SYNTRX

• 3 VCOs with a wide tonal range (1Hz - 10 kHz for VCO1 & 2; 0.05 Hz - 500 Hz for VCO3)
• 2 Mixable waveforms per oscillator (incl. waveshaping)
• V/Okt. tracking via up to 8 octaves
• Switchable synchronisation of VCO2 to VCO1
• Noise generator with filter
• Low-pass filter with resonance
• Sample & Hold generator
• Ring modulator
• Function generator with AD-; ASR- and loop mode
• 2 VCAs with panorama control
• 2 Output filters with infinitely adjustable crossfading from low-pass to high-pass
• Assignable joystick with attenuator for X- and Y-axes
• Integrated spring reverb with mix and feedback control
• VU meter for displaying control voltage or audio level
• 2 Built-in active speakers with mute switch
• Switchable between line and microphone levels

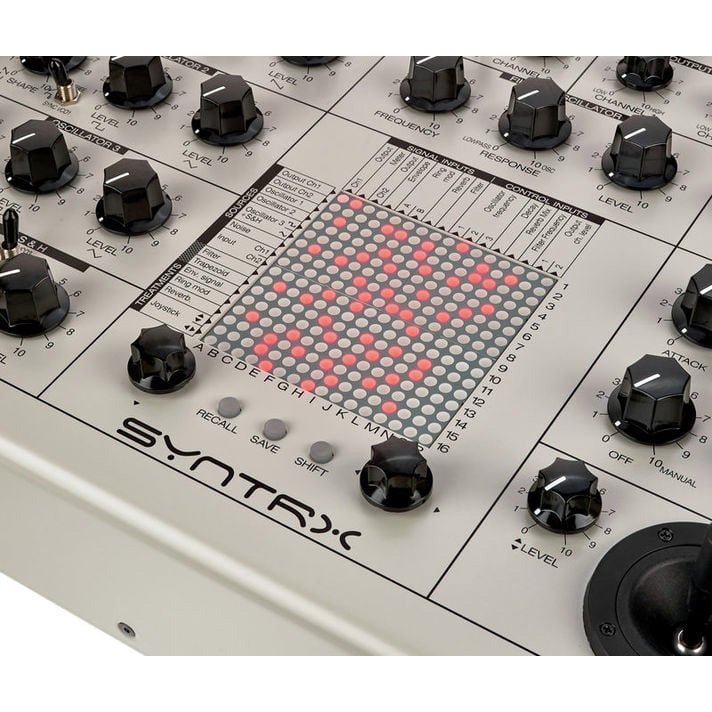

• Digitally controlled modulation matrix with 16 sources and 16 destinations
• Memory for 256 patches
• Dimensions (W x D x H): 457 x 309 x 115 mm
• Weight: 4.05 kg

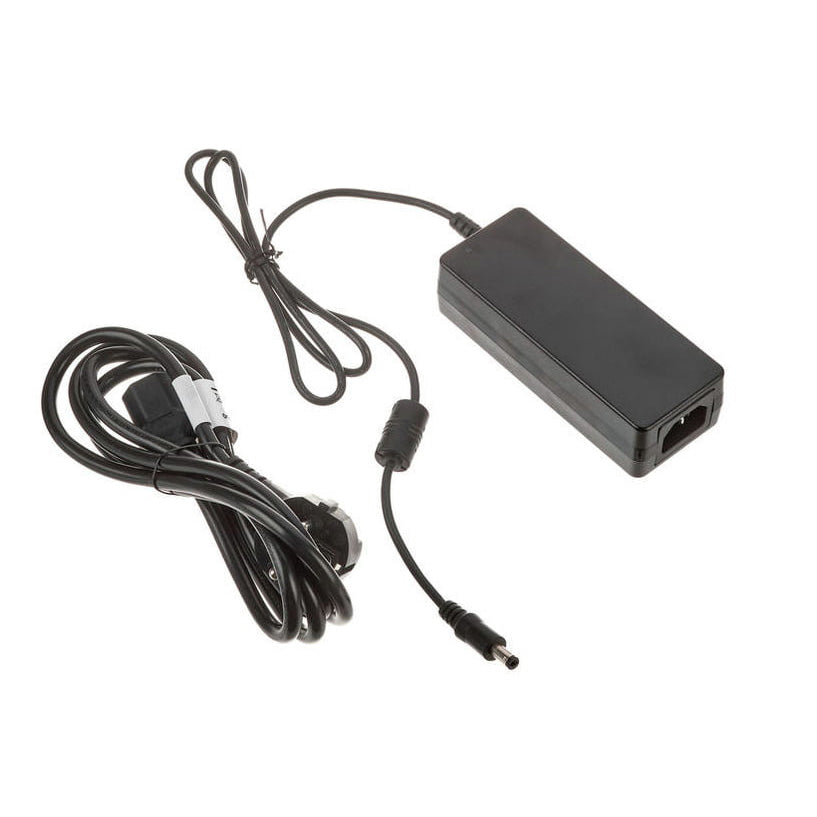

• Includes an external power supply (12V DC)
• Suitable optional case: Art.506035 (not included)

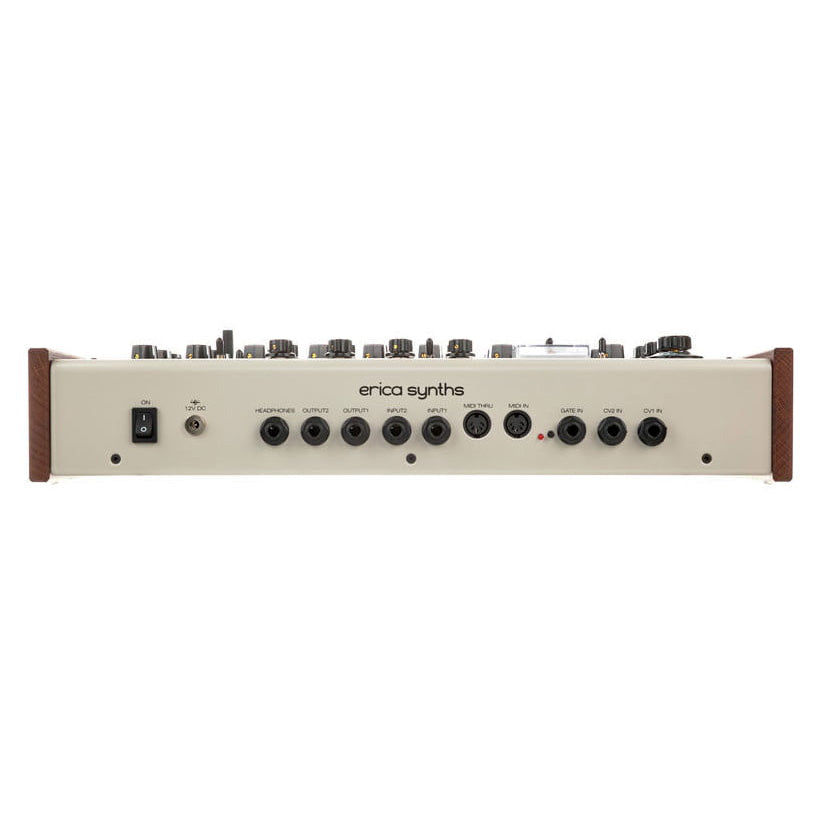

Connectors:

• 2 CV inputs: 6.3 mm jack
• 1 Gate input: 6.3 mm jack
• 2 Audio inputs: 6.3 mm jack
• 2 Audio outputs: 6.3 mm jack
• 1 Stereo headphone output: 6.3 mm jack
• 1 MIDI In/Thru: 5-pin DIN
