Multi-Effect Pedal for Electric Guitar
- Built-in Tri-Core DSP
- Uses hi-fi quality ESS Sabre AD/DA to provide a fuller sound
- 87 Amp models
- 68 Cabinet models
- 300 Presets
- Built-in stereo looper with 60 seconds recording time
- Pedalboard-friendly dimensions

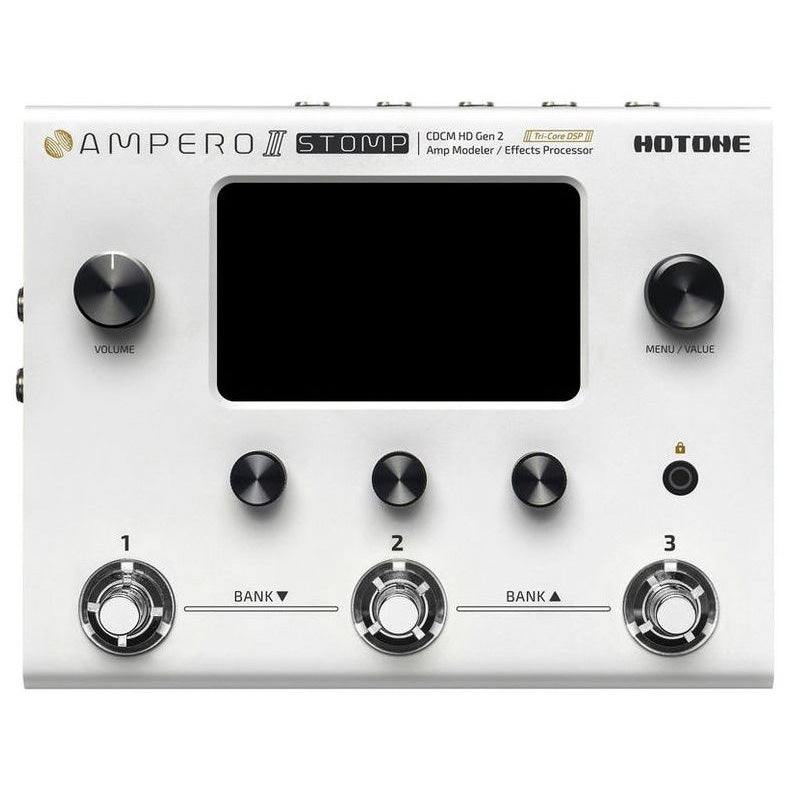

- Controls: Volume; Menu/Value; 3x Select knobs
- Push buttons: Screen Lock button
- LED: Effect on
- Display: 4.3'' TFT touch screen
- 3 Assignable footswitches

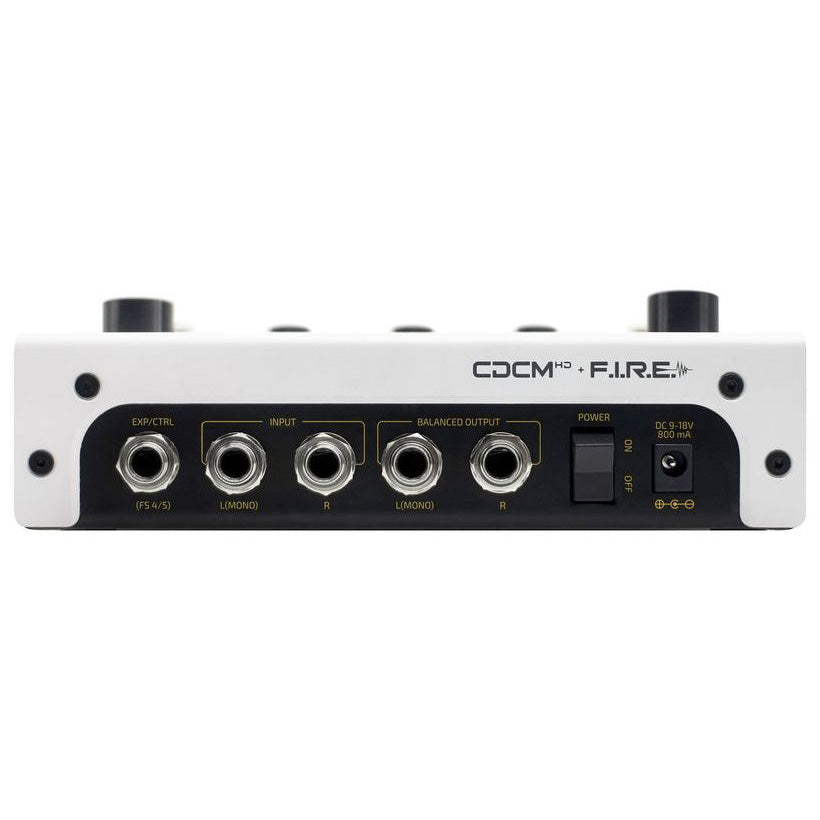

- Input L (mono) & R: 2x 6.3 mm jack
- Balanced output L (mono) & R: 2x 6.3 mm jacks
- EXP/CTRL/FST: 6.3 mm stereo jack

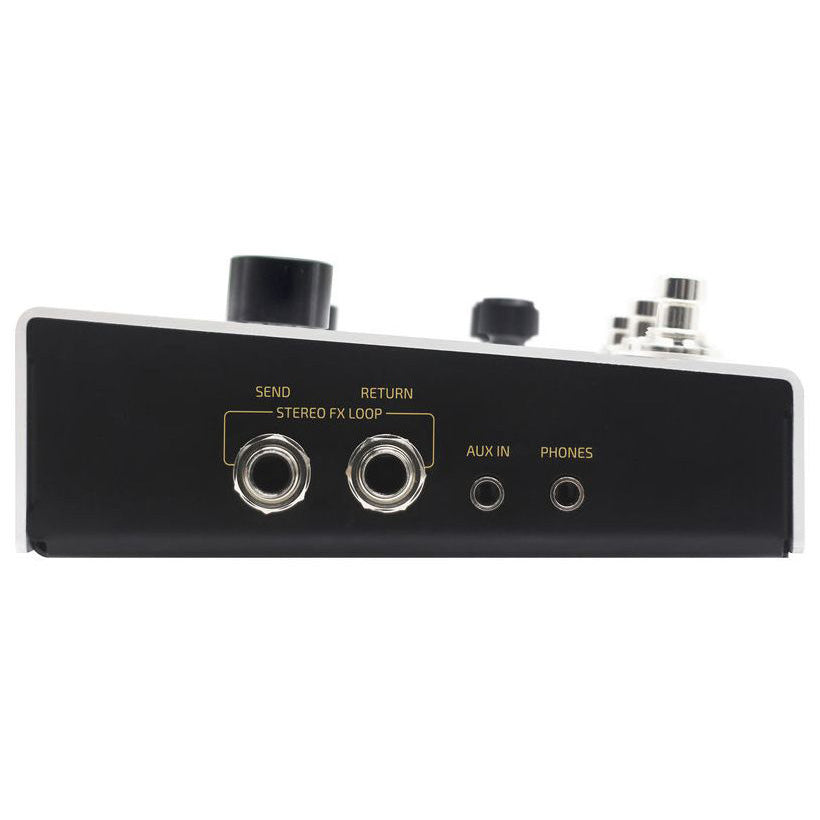

- Send & Return: 2x 6.3 mm jack
- Aux in: 3.5 mm mini stereo jack
- Headphone jack: 3.5 mm mini stereo jack

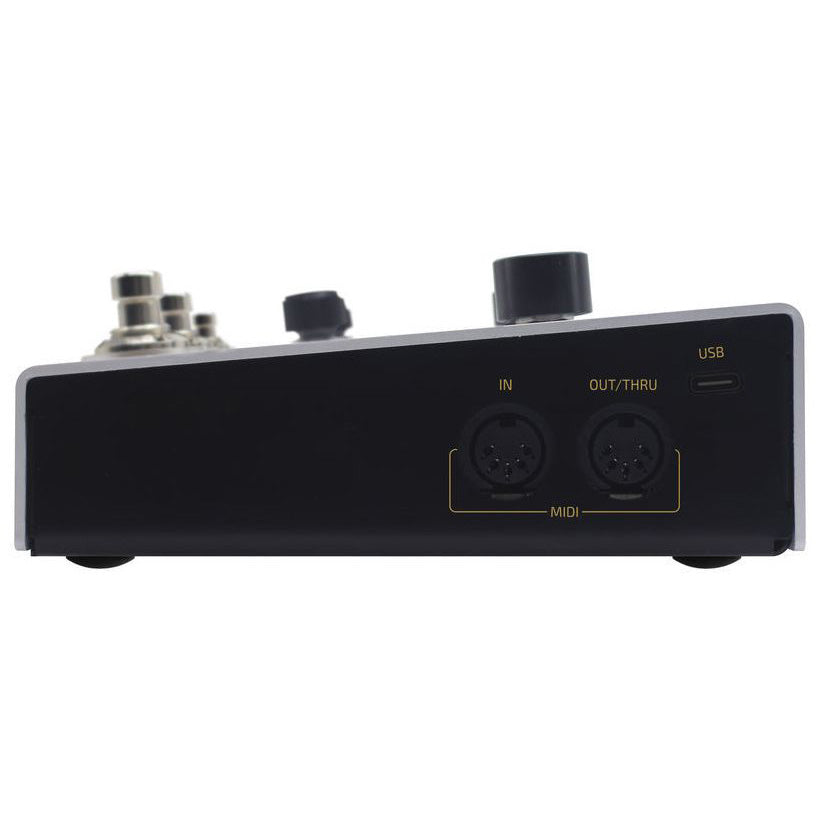

- MIDI In: 5pin
- MIDI Out/Thru: 5 pin
- USB C
- Power adapter connector: Barrel connector 5.5 x 2.1 mm; negative polarity inside
- Power consumption: 800 mA
- Power supply via 9-18 V DC mains adapter (included in delivery; suitable optional mains adapter)
- True bypass
- Dimensions (W x D x H): 185 x 145 x 58 mm
- Weight: 1080 g
Note: Battery operation is not supported.
