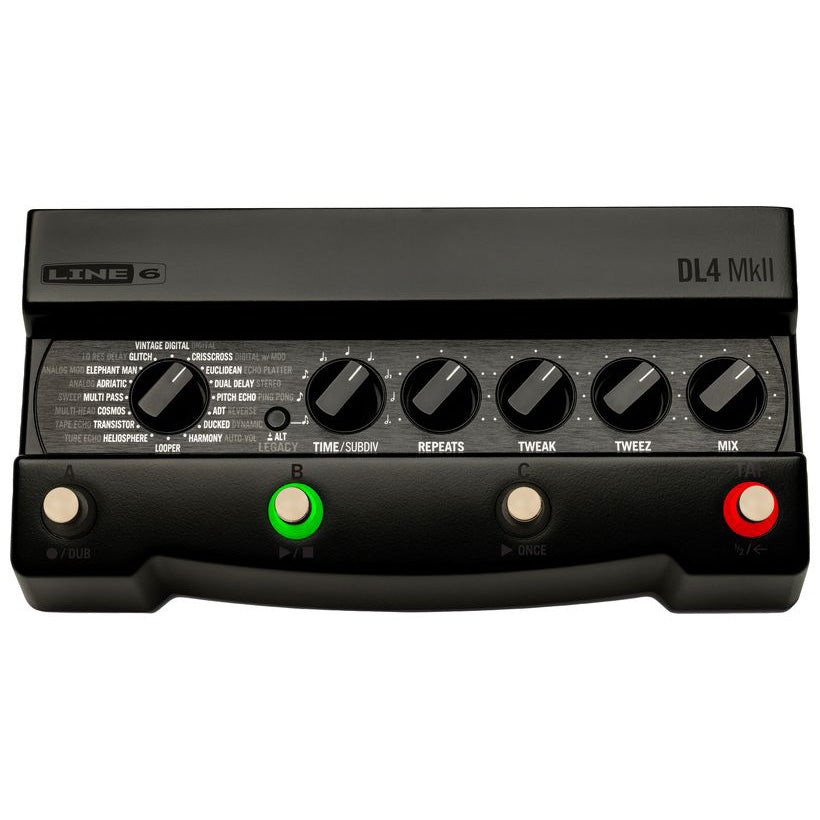

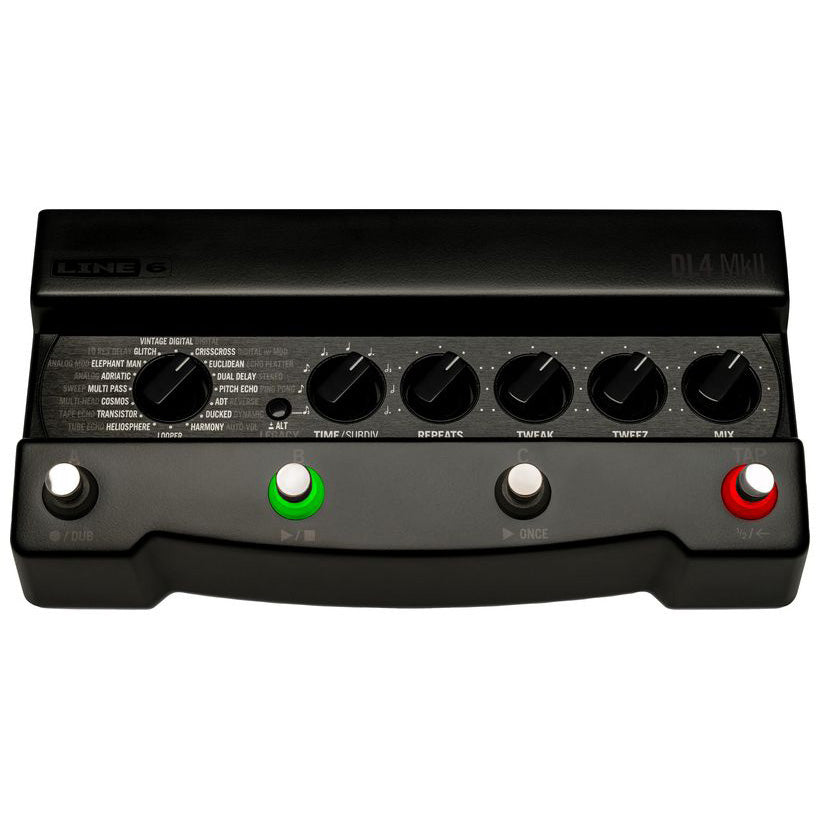

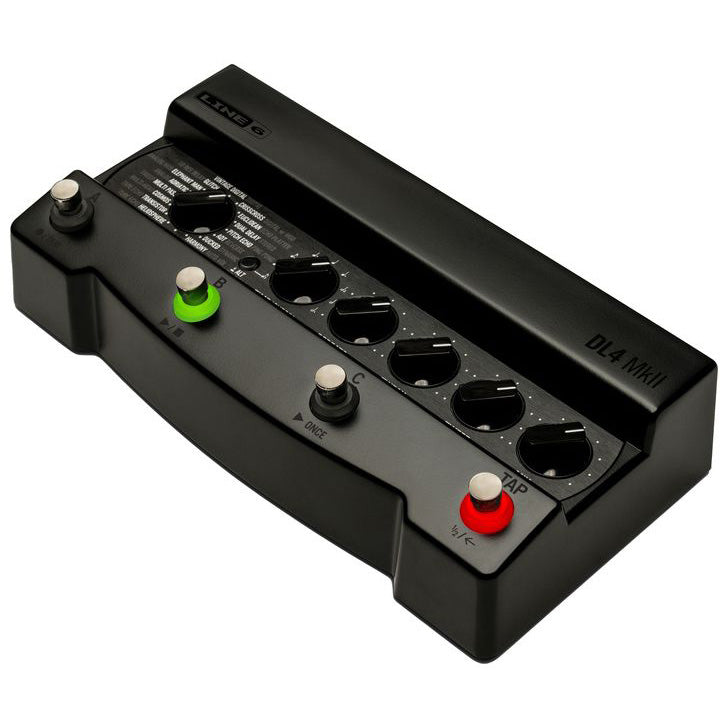

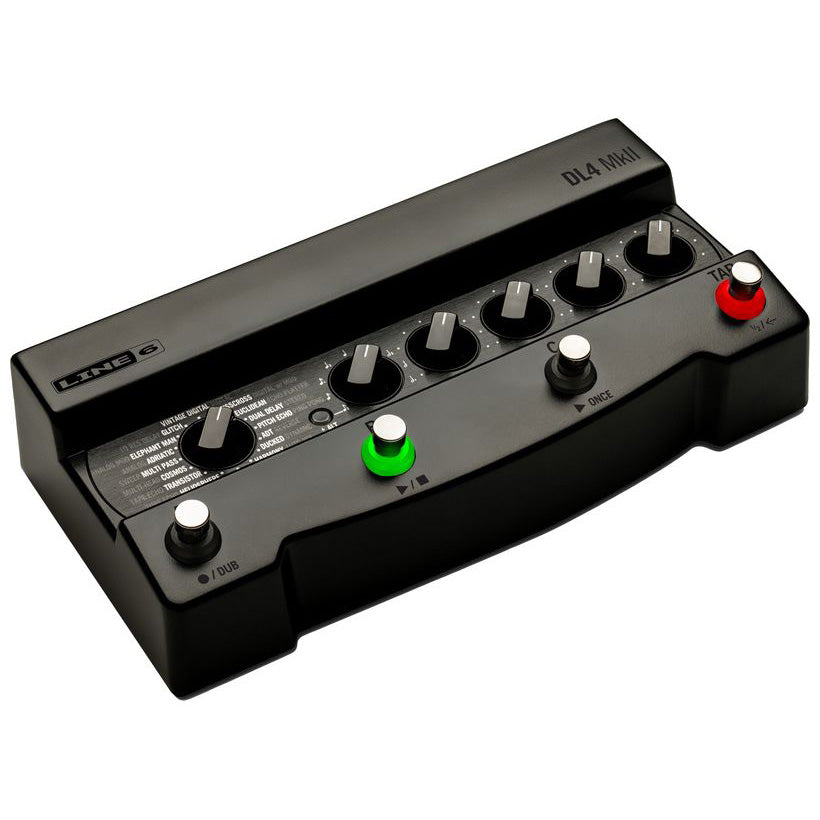

Line6 DL4 MKII Blackout

• 30 Delay modes
• 2 Loopers with up to 240 seconds
• Loop time (can be extended to several hours with optional MicroSD card - not included)
• Mono/stereo and pre/post signal path
• 128 Presets via MIDI, 6 via footswitch
• Input for optional expression pedal or two additional footswitches (not included)
• Controls: Mode, Time/Subdiv, Repeats, Tweak, Tweez, Mix
• LED: A, B ,C, D
• Footswitches: A-Rec-Dub, B-Play-Stop, C-Play Once, Tap-1/2
• Dimensions: (W x D x H): 235 x 112 x 52 mm
• Weight: 940 g

Note: Battery operation is not supported

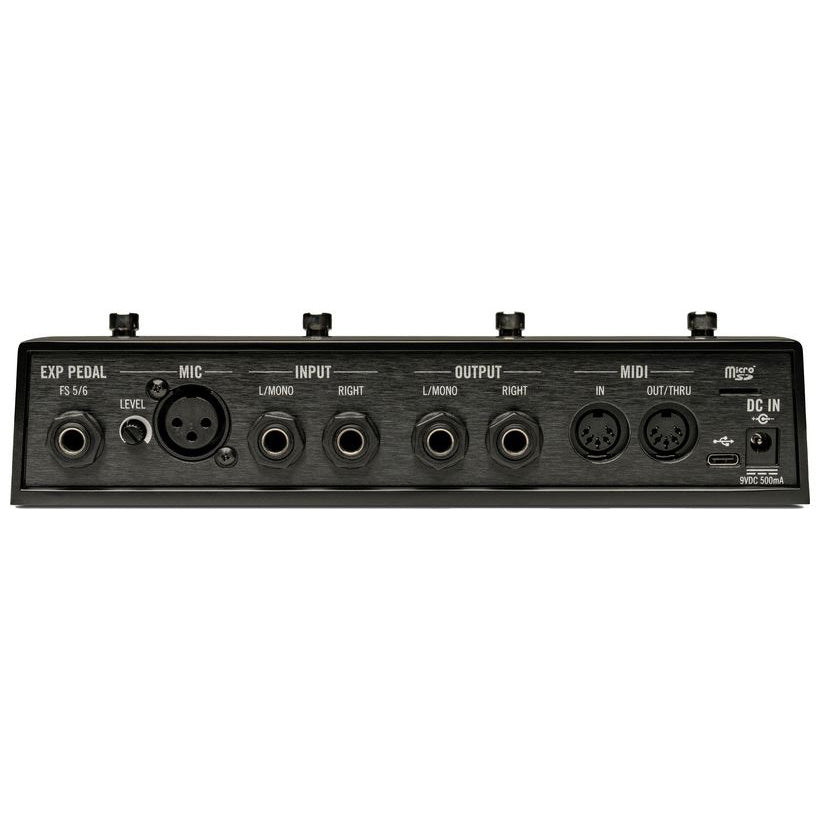

Connections

• Inputs: L/Mono and R (2 x 6.3 mm jack)
• Outputs: L/Mono and R (2 x 6.3 mm jack)
• Microphone input: XLR
• MIDI In / Out / Thru
• Expression: 6.3 mm stereo jack
• Power supply connection: Barrel connector 5.5 x 2.1 mm, centre negative
• Power supply with a 9 V DC mains adapter (included)
