2 Channel EQ
- 4 Tapes per channel
- Circuit fully passive
- Overlapping frequency ranges
- Each band offers the possibility of Shelf or Bell
- Pro Band: Cut, Boost, and Off
- Tube Make-Up Gain
- Passive high-pass and low-pass filters
- Level +4 dBU (can be switched internally to -10)
- EQ Frequency control range: 22 to 27000 Hz
- EQ Boost / Cut Range: 20 dB Boost / 20 dB Cut
- Frequency range: +/- 2 dB: 8 - 60000 Hz
- Maximum output at 1.5% THD +37 dBv, +26 dBv at 20 Hz
- THD & noise (1KHz at +4 dBu): 0.06%
- Noise Floor (with respect to + 4dBu): -85 dB (A Weight)
- Dynamic Range: 120 dB
- Bypass switch

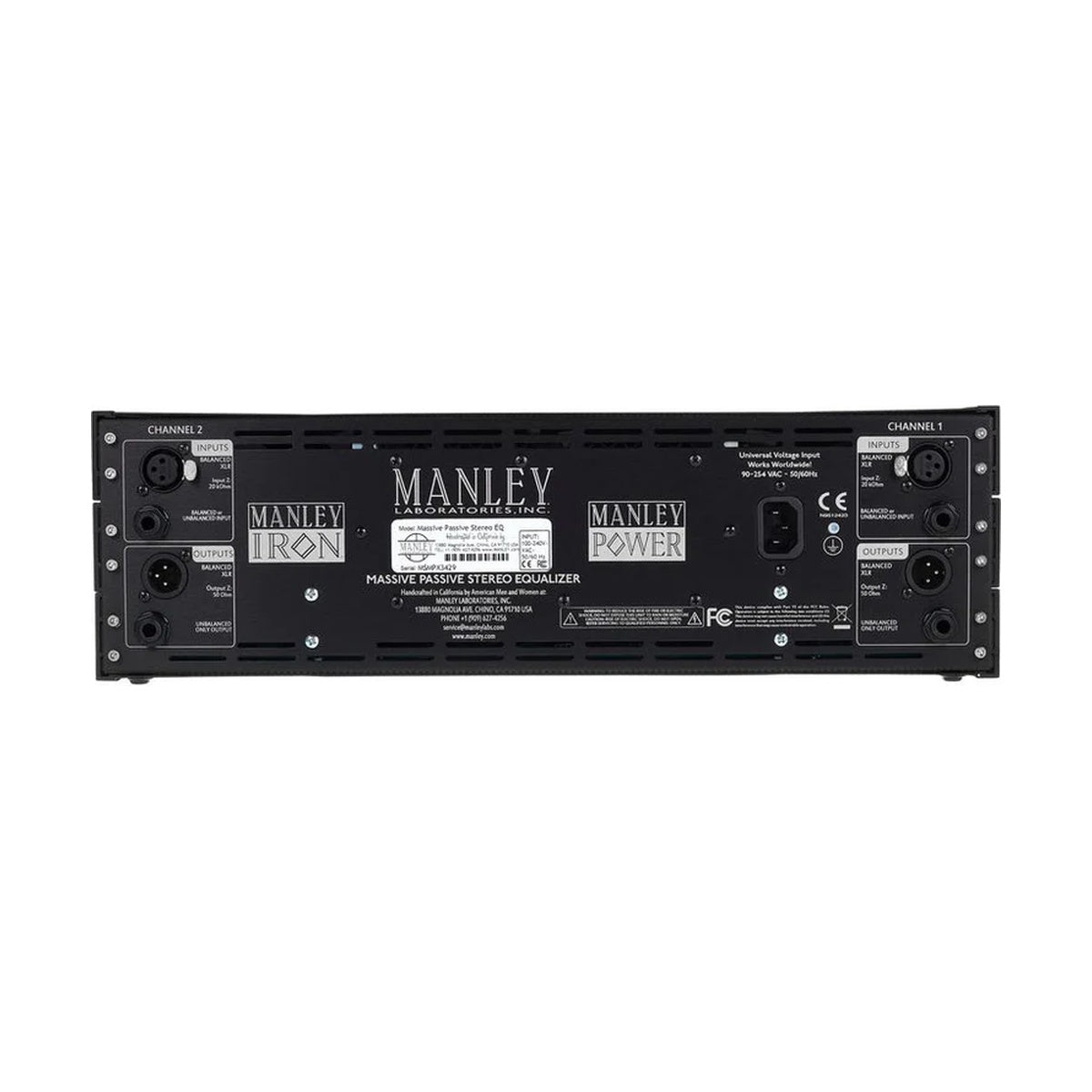

- Inputs and outputs as balanced XLR and 1/4 '' jack
- Weight: approx. 9.5 kg
