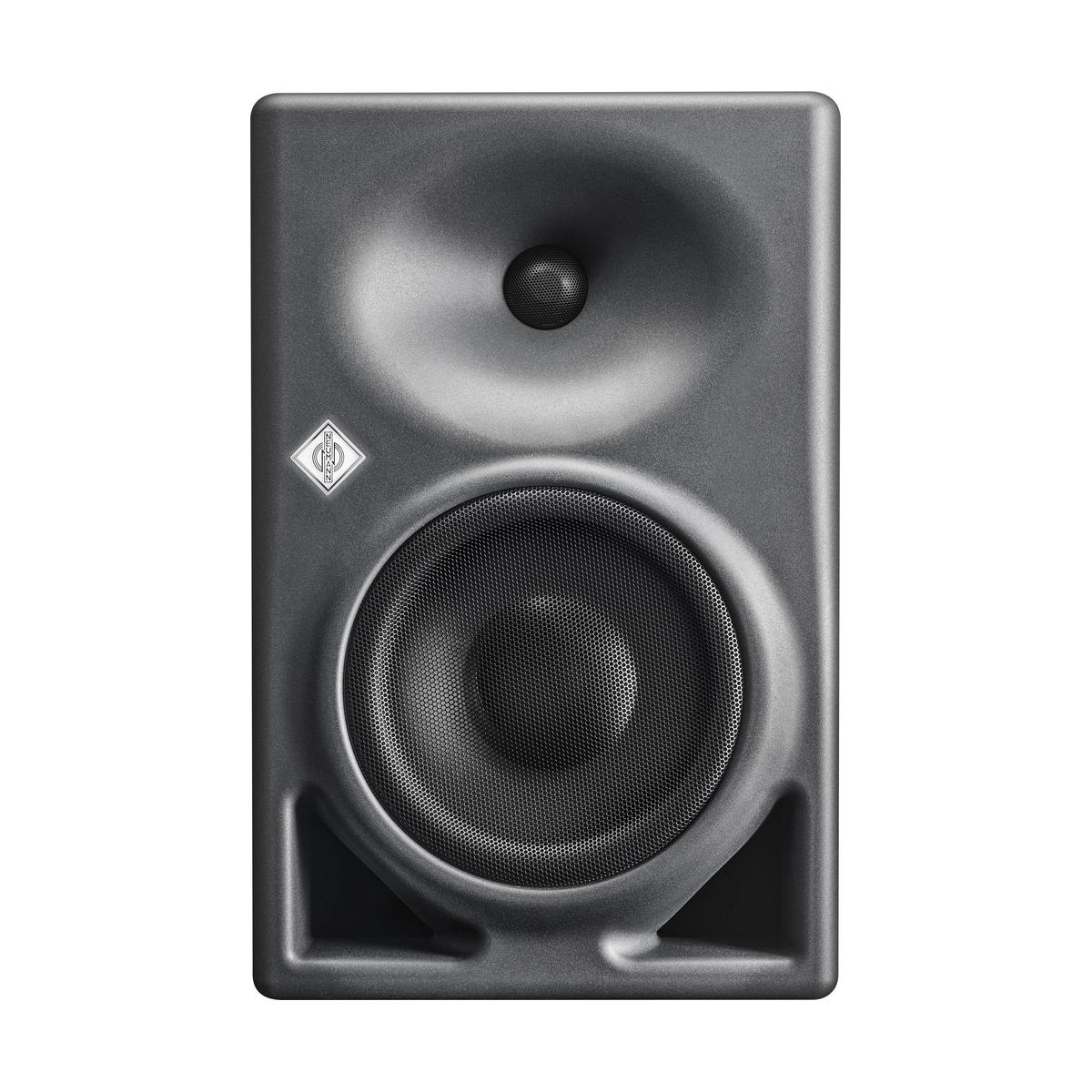

Neumann KH 150 – Active DSP Studio Monitor with 6.5" woofer, 39 Hz – 21 kHz range, room calibration, and Ethernet connectivity.
The Neumann KH 150 is a high-precision, active two-way nearfield monitor designed for critical studio applications such as mixing, mastering, and professional audio monitoring. Featuring a 6.5-inch woofer and 1-inch tweeter, it delivers an extended and accurate frequency response from 39 Hz to 21 kHz with linear phase characteristics and minimal distortion. The built-in DSP allows for both automatic and manual room correction using the optional MA 1 measurement microphone and dedicated software, making it a powerful solution even in untreated rooms.
The cabinet features a bass reflex design with a precisely engineered Mathematically Modeled Dispersion (MMD) waveguide that minimizes surface reflections and ensures accurate stereo imaging. Rear panel controls offer fine-tuning of low, mid, and high frequencies, gain adjustment, and source selection. The KH 150 also includes Ethernet connectivity for AES67 audio networks, fully compatible with ST 2110, ST 2022-7, RAVENNA, and Dante protocols. Designed for demanding producers and engineers, the KH 150 ensures you hear every detail with uncompromising clarity.
KEY FEATURES
- Two-way nearfield monitor with 6.5" woofer and 1" tweeter
- Built-in DSP for room calibration and correction
- Supports MA 1 measurement microphone (sold separately)
- Frequency range: 39 Hz – 21 kHz
- Maximum SPL: 119 dB
- Mathematically Modeled Dispersion (MMD) waveguide for reduced reflections
- Ethernet port supporting AES67, ST 2110, ST 2022-7, RAVENNA, and Dante

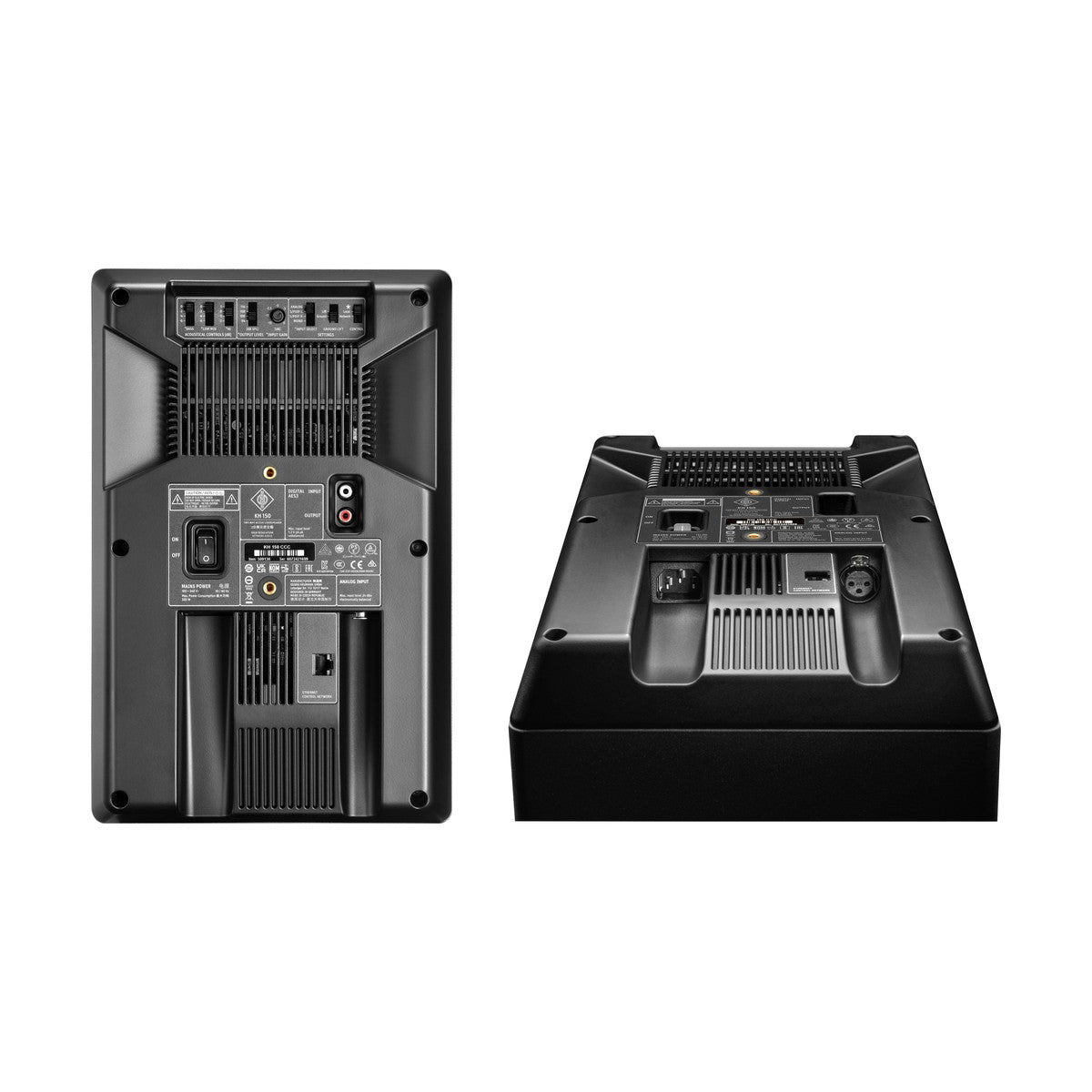

- Rear panel EQ controls for bass, mids, and highs
- Built-in limiter and overload protection
- Energy-efficient standby mode
TECHNICAL SPECIFICATIONS
- Type: Active two-way nearfield monitor
- Total output power: 245 W (145 W LF, 100 W HF)
- Frequency response: 39 Hz – 21,000 Hz
- Maximum sound pressure level: 119 dB
- Woofer: 6.5-inch
- Tweeter: 1-inch
- Cabinet design: Bass reflex with phase inversion
- DSP: Yes, with MA 1 calibration support
- Inputs: Analog and digital (Ethernet AES67, Dante)
- Controls: EQ adjustments, SPL trim, source select, ground lift
- Dimensions: 225 x 273 x 345 mm
- Weight: 8 kg
