PMC 8-2 SUB-L

PMC8-2 SUB-L

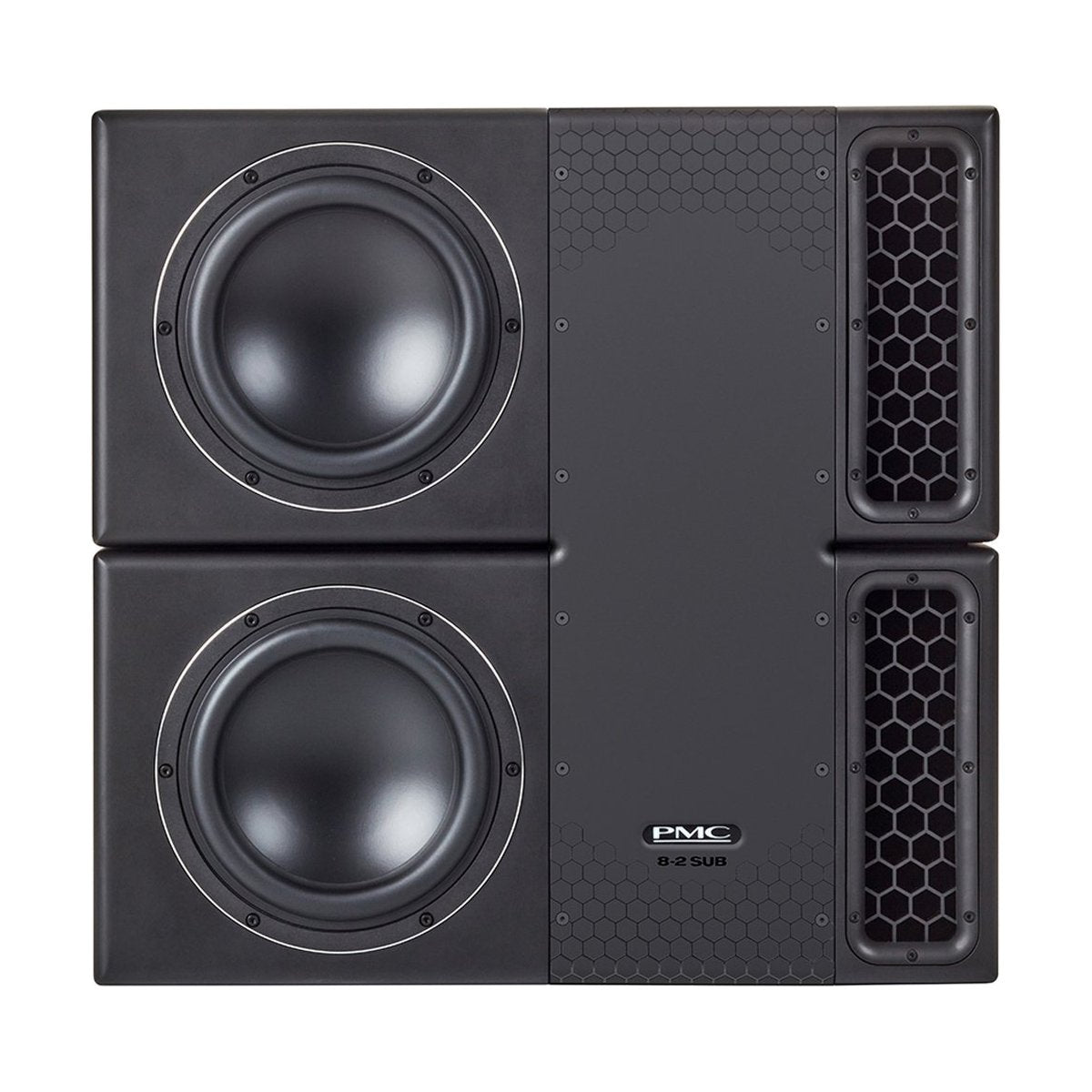

Active subwoofer with twin 8-inch bass drivers and ATL™ bass loadingThe PMC 8-2 SUB is a true low-frequency monitor like the PMC8 SUB and offering the same DSP engine and seamless integration with surround and immersive systems, the PMC8-2 SUB betters the spec of its smaller sibling, offering higher maximum SPL output down to 25Hz. With the same dimensions as the PMC8-2 midfield monitor, the PMC8-2 SUB’s twin eight-inch bass drivers are powered by independent 400W Class-D amplifiers. The same configuration options are available as on the PMC8 SUB, likewise accessible on the speaker’s rear panel or by using the browser-based SoundAlign™ software via a LAN-connected tablet, smartphone or computer. The PMC8-2 SUB can be used as a standalone subwoofer for multichannel and immersive sound systems, or as an XBD cabinet with either PMC6-2 or PMC8-2 s, creating a system of awesome power and dynamic range. The sub is available in either left- or right-handed cabinet versions (PMC8-2 SUB-L or PMC8-2 SUB-R), to allow placement of the bass drivers on the outside edges of a stereo array, matching the arrangement of the main monitors. Specifications

• Type Active subwoofer with twin 8-inch bass drivers and ATL™ bass loading
• Drive Unit Complement
  LF PMC 200mm (8”) studio 8 driver
• Effective ATL™ Length 3m (9.8ft)
• Frequency Response 25Hz – 500Hz (- 3dB) (@1m full space, on-axis)
• Sensitivity +4dBu input signal = 98dB SPL @ 1m
• Max continuous SPL 115dB @1m
  (Quarter space value calculated as +3dB from half space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
• Max Peak SPL 121dB @1m
  (Quarter space value calculated as +3dB from half space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)

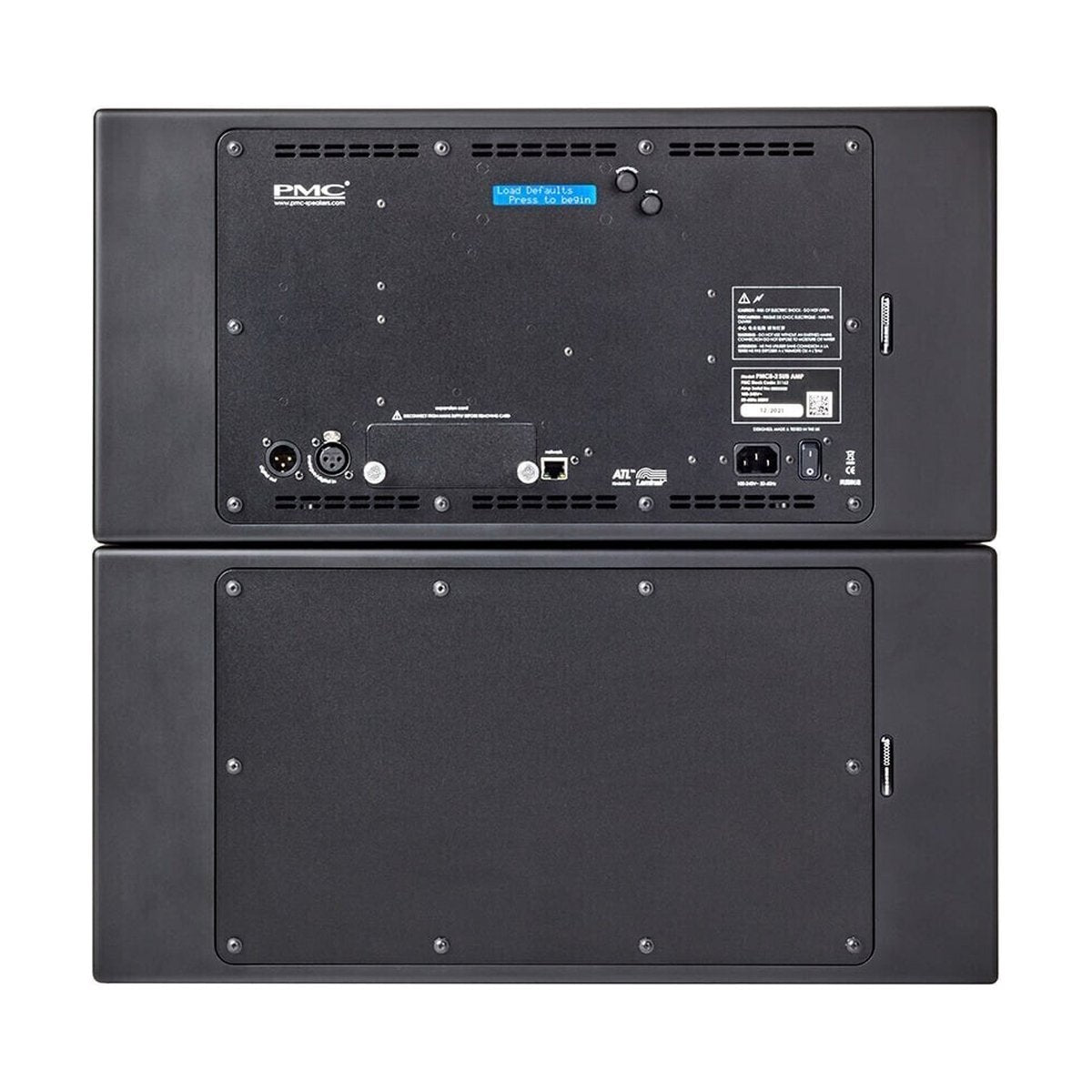

• Input XLR switchable between analogue & digital AES3
  Analogue input – +20/+24dBu max. input level (selectable) – 22K ohm input impedance
  Digital input – 16/24-bit AES3 signal, left, right or left + right – 18 – 192kHz Sample Rate – 110 ohm input impedance
  Expansion card slot – For future connectivity upgrades
• Output XLR digital AES3 (fixed 24-bit @ 96kHz)
• Network RJ45 for use with PMC SoundAlign web interface
• Features
  Level Trim (+/-10dB)
  High-pass/Low-pass filter (20 – 200Hz, 12dB/Oct)
  Delay (0 – 30mS)
  Phase (normal or inverted)
  LF & HF shelving filters (20Hz – 20kHz, +/- 10dB, Q 0.707)
  Parametric EQ (5 bands, 20Hz – 20kHz, +/- 10dB)
  User presets (3 + factory defaults)
• Latency 2.4mS
• Amplifier power per channel 300Wrms
• Mains 100 – 240VAC auto-switching, 50-60Hz (IEC C14)
• Power consumption (idle) 25W
• Power consumption (max) 300W
• Cabinet dimensions
  H 266mm (10.5”)
  W 551mm (21.7”)
  D 440mm (17.3”)
• Weight 18.5kg (40.8lbs) each
