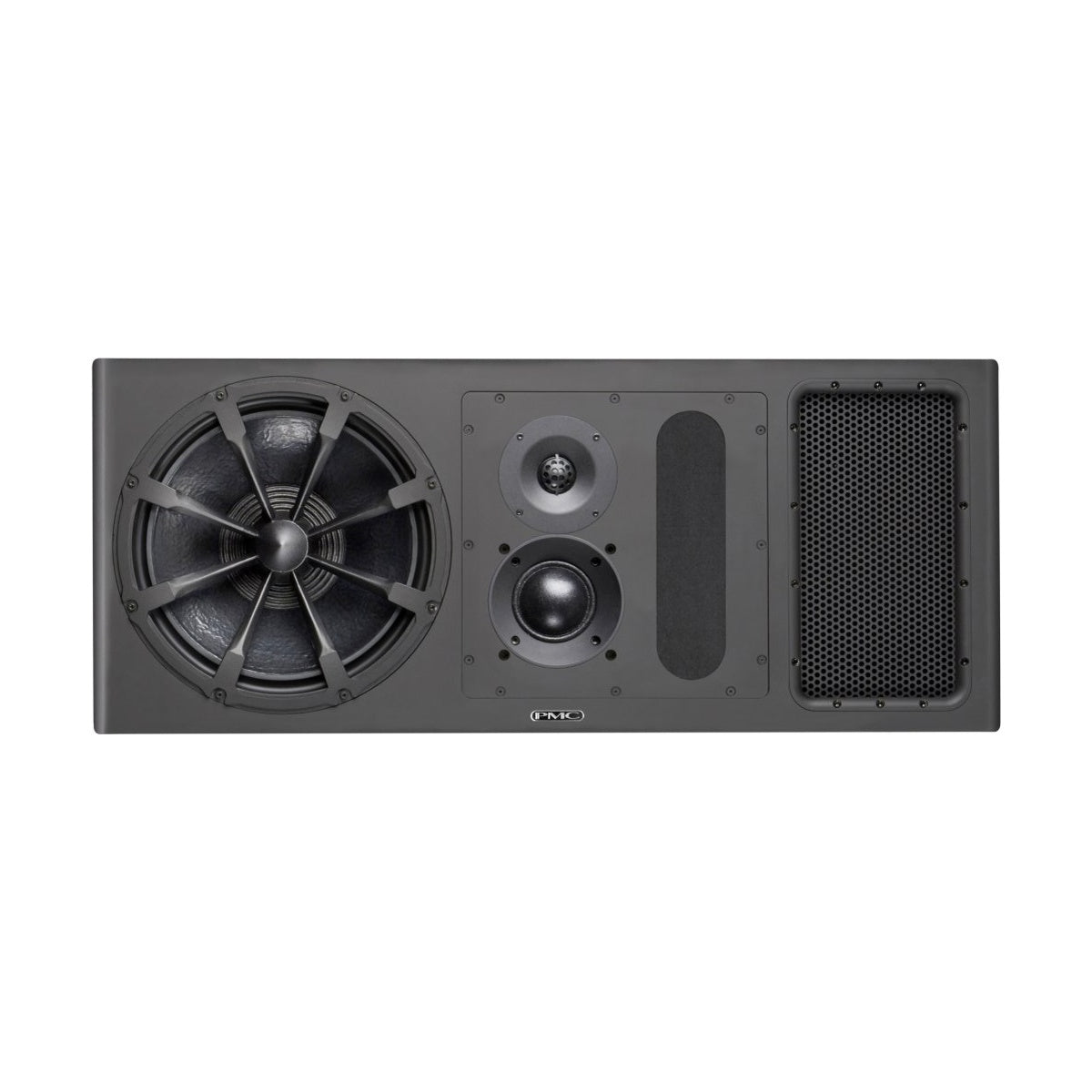

PMC BB6S-A-C

PMC BB6S-A-C centre

Active 3-way MonitorBuilding on the unique heritage and 25-year success of PMC’s BB5, the BB6 offers the same wide dynamic range and frequency response, 15-inch Radial™ bass driver, unwavering tonal consistency at all output levels and high maximum SPL (up to 128dB) of its predecessor, but with the additional power and flexibility of PMC’s proprietary Class-D amplification and DSP control. Flat down to a truly profound 17Hz and extending to beyond the limits of human hearing at 25kHz, the BB6-A may be used in larger recording, mixing, mastering or outside broadcast applications, and is equally at home in a tower configuration or mounted in soffits — although soffit-mounting is not essential, as the ATL™ bass response is sufficient without the LF gain achieved by soffit-mounting. As with the smaller MB3-A, the BB6-A can form part of a multi-channel loudspeaker system, for which the separate BB6-C-A is available. Subwoofers are not a necessity, as the BB6-A speakers already cover the 20-60Hz sub-bass range with plenty of headroom. Dedicated ‘PointOne’ LFE inputs are therefore included on each Power 1200 amplifer for use with multi-channel content, including film soundtracks.

• Type: 3-way ATL™ active reference monitor
• Frequency response: 17Hz-25kHz
• Power per channel: 3225W (HF 275W, MF 550W, LF 2400W)
• Effective ATL™ length: 4 metres
• Maximum SPL: 128dB

Specifications

• Available Finishes: Studio black
• Crossover Frequency: 380Hz & 3.8kHz
• Dimensions: H 1040mm (40.9″) x W 432mm (17″) x D 790mm (31.1″)
• Drive Units: LF – PMC 380mm (15-inch) Radial driver
  MF – PMC hand built 75mm soft-dome driver
  HF – PMC 34mm soft-dome tweeter with acoustic radiator
• Effective ATL™ Length: 4m (13ft)
• Frequency Response: 17Hz – 25kHz
• Impedance: Input Impedance 20k Bal
• Input Connectors: AES3, 24-bit, 96kHz
• Weight: 73kg (161lbs)
• Amplifier Power per Channel: LF – 1 x 2400Wrms
  MF – 1 x 550Wrms
  HF – 1 x 275Wrms
