PMC IB2S-AII

PMC IB2S-AII

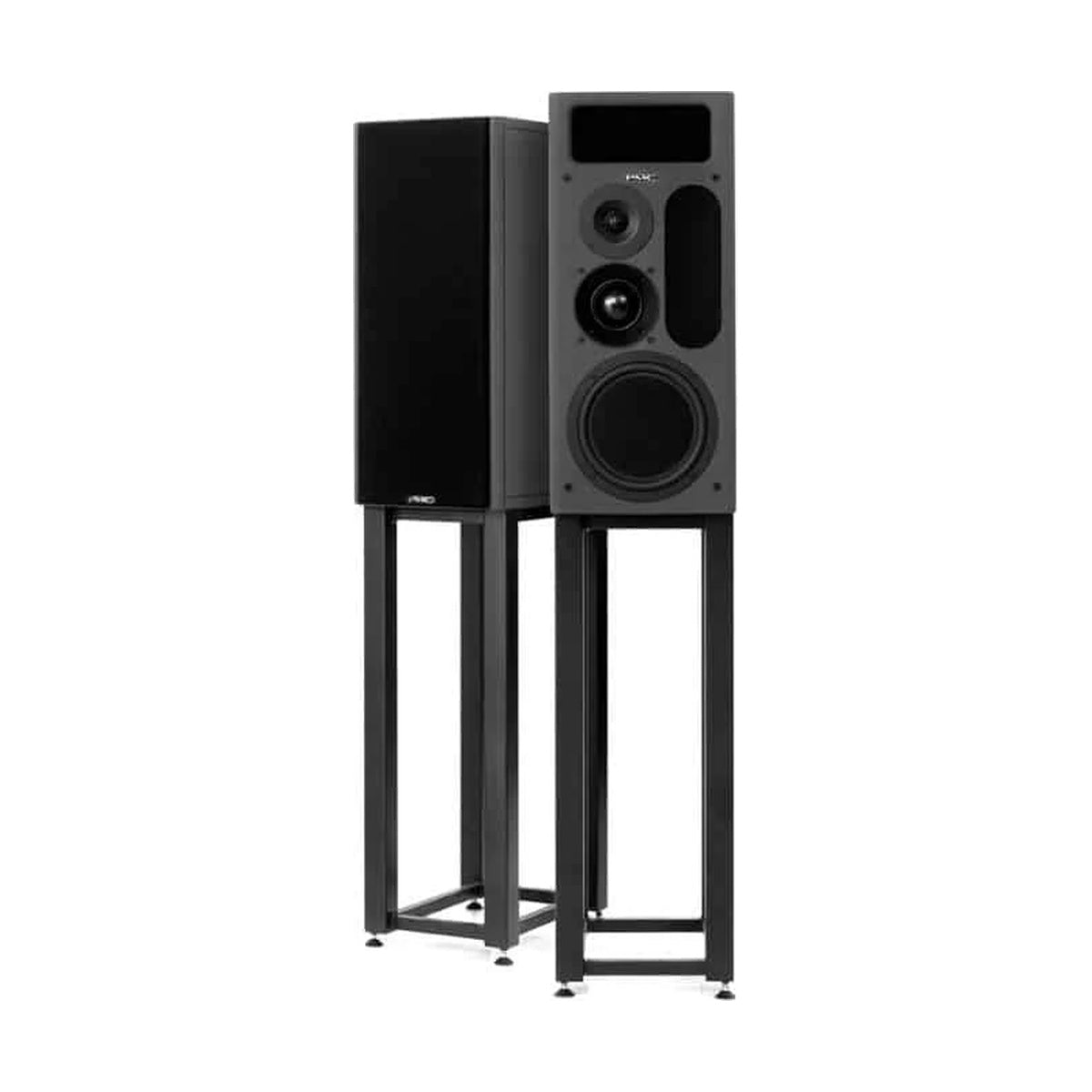

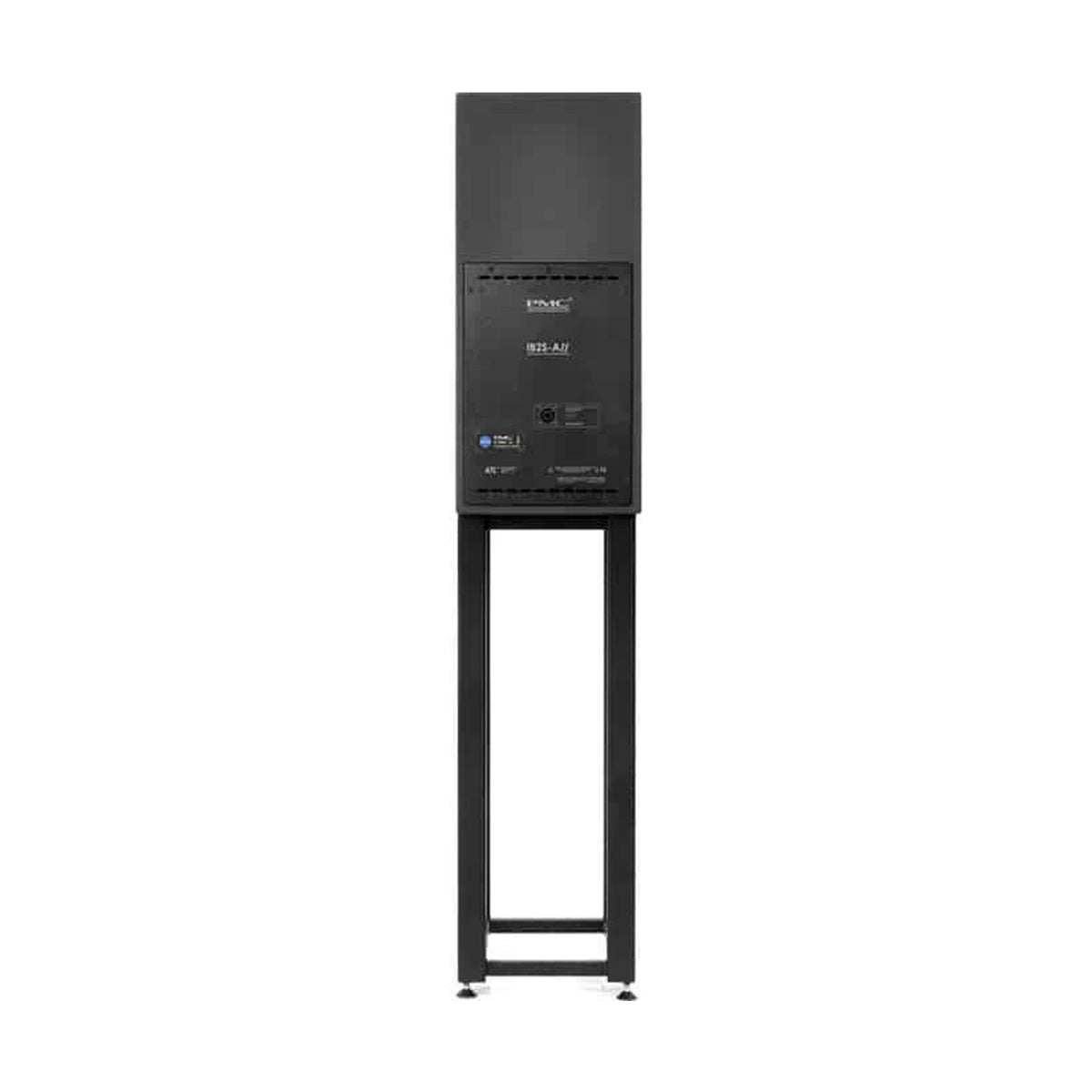

Active 3-way Reference MonitorThe three-way IB2S-AII offers discerning users all the attributes of PMC’s large ATL™ reference active monitors but in a more compact form. They are ideal for high-end reference monitoring in both stereo and surround formats. The DSP-controlled, Class-D powered cabinets make use of PMC’s ATL™ (Advanced Transmission Line) bass-loading technology, providing a smoothly controlled, high-resolution low-frequency response. Each cabinet features PMC’s hand-built preparatory drivers – the 10-inch carbon-fibre/Nomex™ piston, 75mm fabricdome mid, and the 34mm soft-dome tweeter. The power is supplied by PMC’s ultra-low distortion devices that are conveniently rack mountable, providing HF 275W, MF 550W and LF 1200W of acoustically transparent power. This single cabinet monitor features user-adjustable HF and LF shelving filters, ±8dB input level trim, and an AES3 digital input, as standard. The input sensitivity of the balanced analogue inputs can also be adjusted from +4dB to +16dB. In addition, the EQ, level trims and analogue/digital input  election settings can be adjusted from a distance using an RJ45-connected remote, which is supplied as standard.

• Type: 3-way ATL™ active reference monitor
• Frequency response: 25Hz-25kHz
• Analogue & digital (up 96kHz) inputs
• Power per channel: 2025W (HF 275W, MF 550W, LF 1200W)
• Effective ATL™ length: 2.4m(8ft)
• Maximum SPL: 125dB
• Three personal balance presets for multiple users

Options:

• Dedicated vertical and horizontal centre channel versions
• Tailor made, high mass, 33” Studio Frame Stands

Specifications

• Available Finishes: Studio black
• Crossover Frequency: 380Hz & 3.8kHz
• Dimensions: H 745mm (29.3 inches) W 330mm (12.9 inches) D 564mm (22.2 inches)
• Drive Units: LF 250mm/ 10” PMC Carbon Fibre/ Nomex™ piston driver
  MF PMC hand-built 75mm soft-dome driver
  HF PMC 34mm soft-dome tweeter with acoustic radiator
• Effective ATL™ Length: 2.4m (8ft)
• Frequency Response: 25Hz – 25kHz
• Input Connectors: Balanced Analogue Main Input/ Through
• Weight: 46.5kg (102.5lbs) each
• Amplifier Power per Channel: LF 1 x 1200Wrms
  MF 1 x 550Wrms
  HF 1 x 275Wrms
