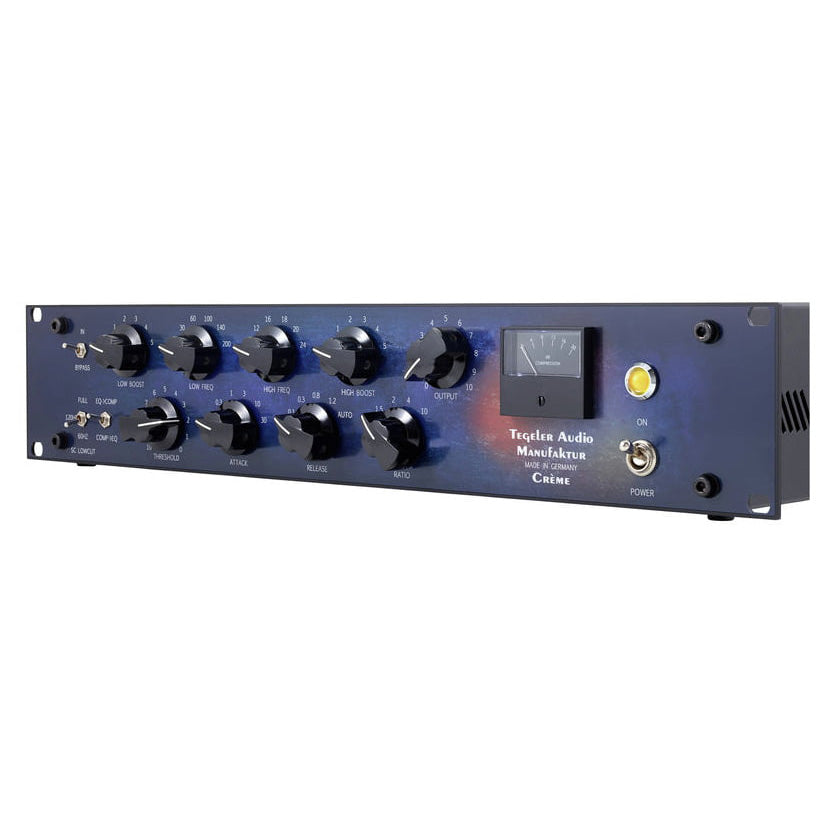

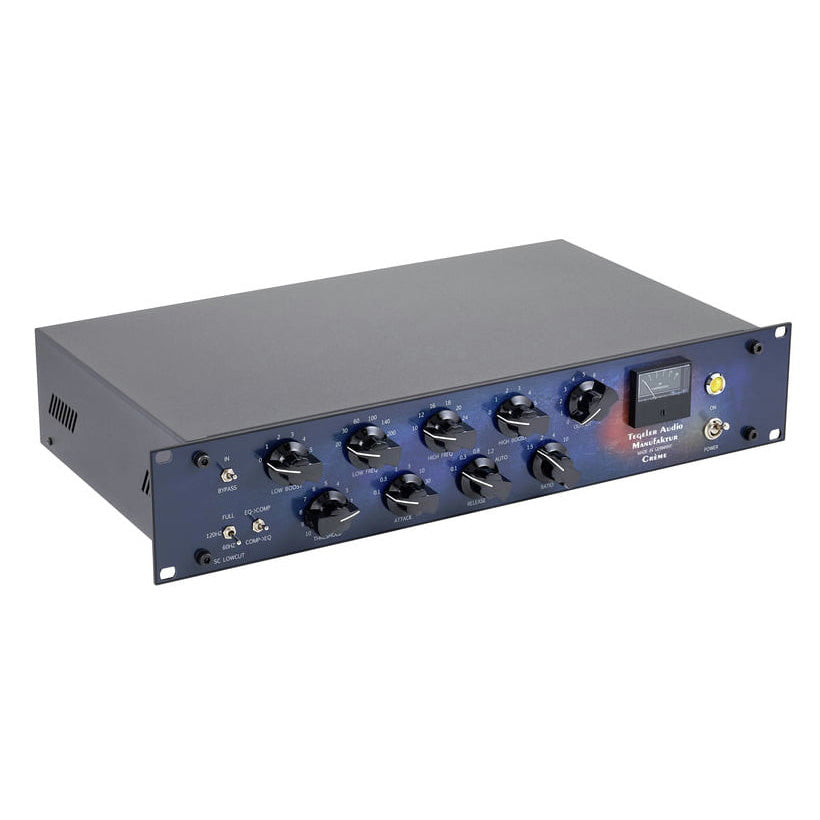

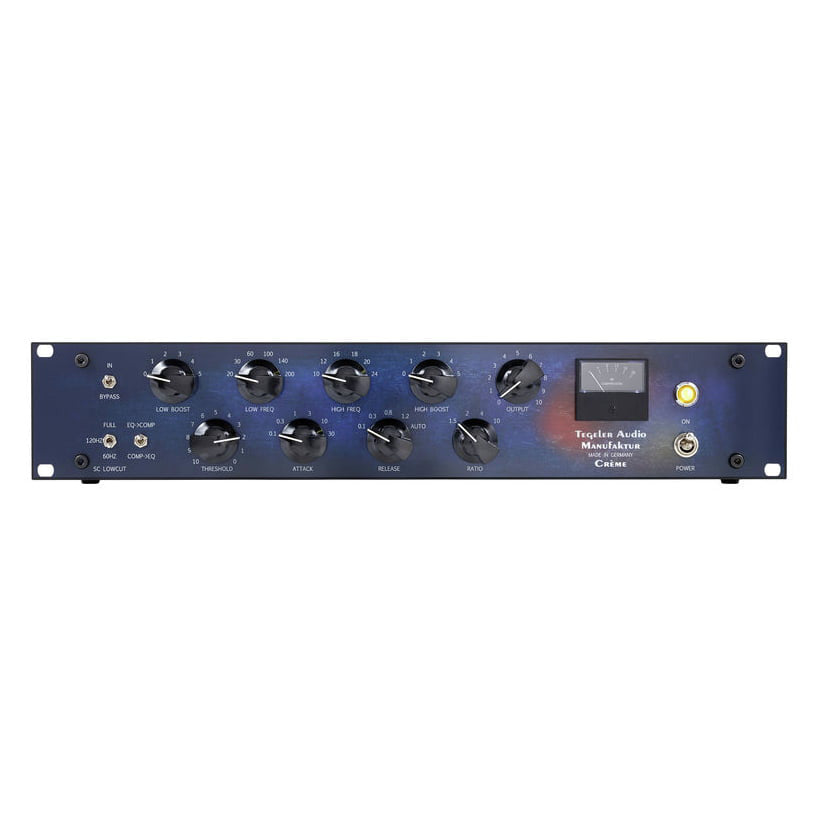

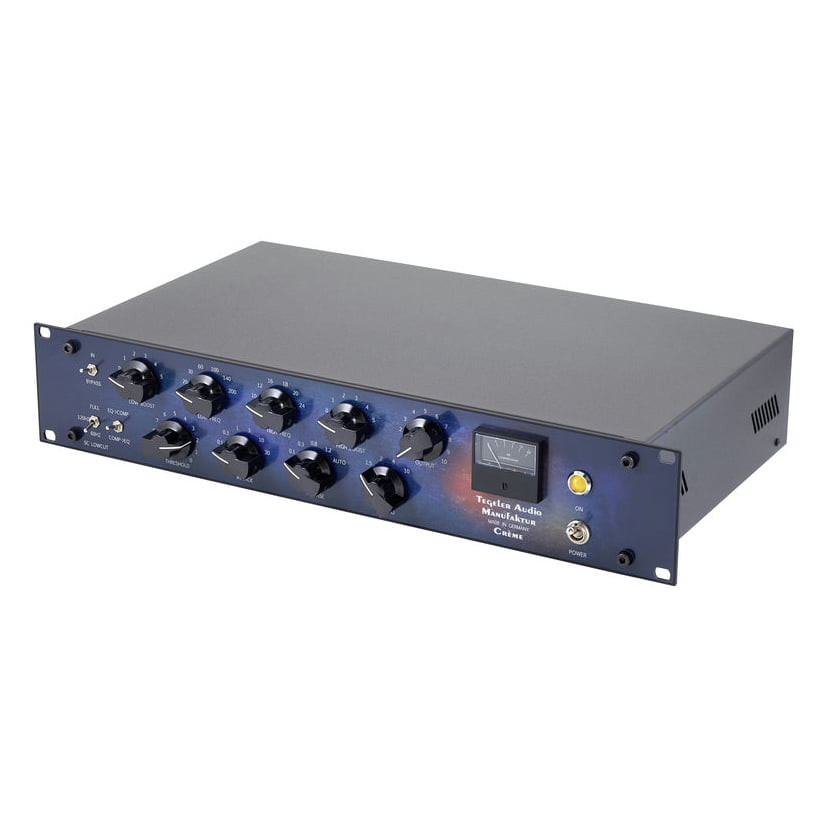

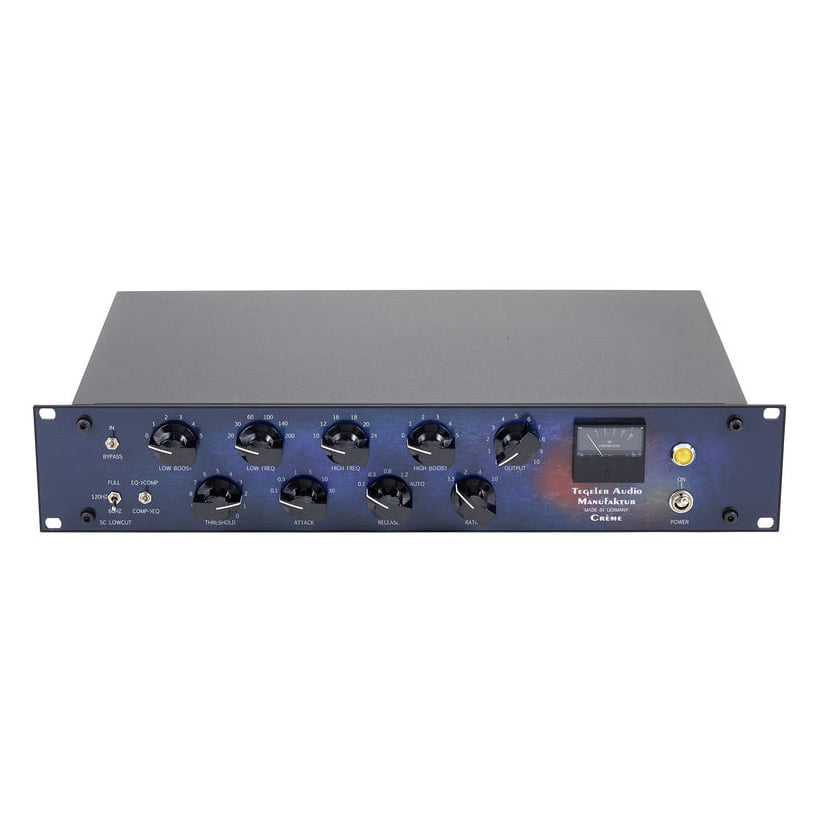

Tegeler Audio Manufaktur Creme

• Stereo device
• Placement of the EQ and compressor in the mix can also be switched
• Low-cut filter in the side-chain

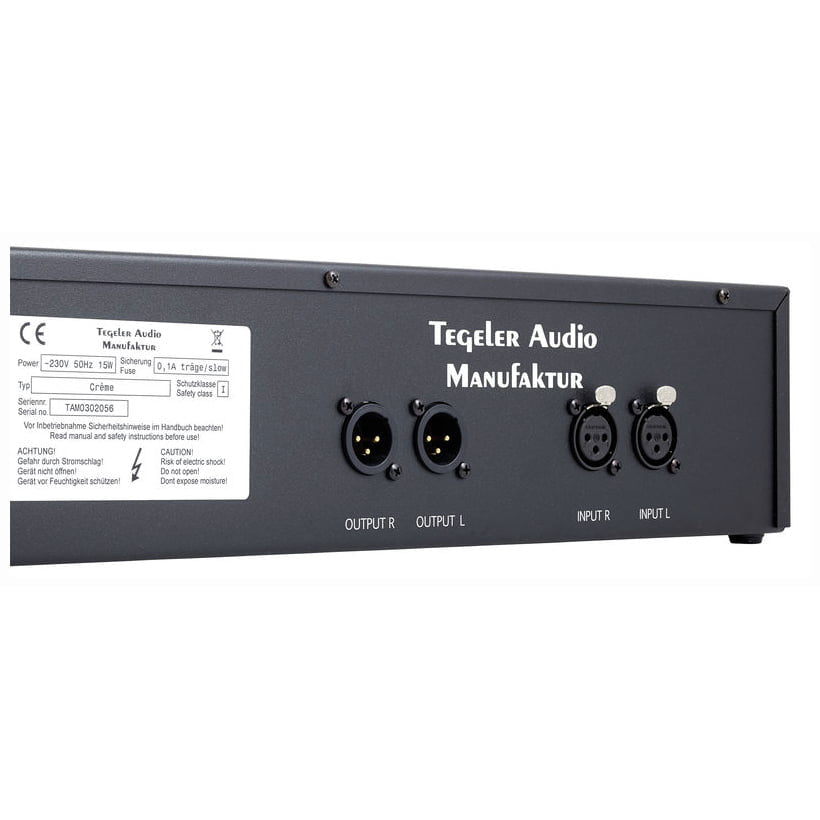

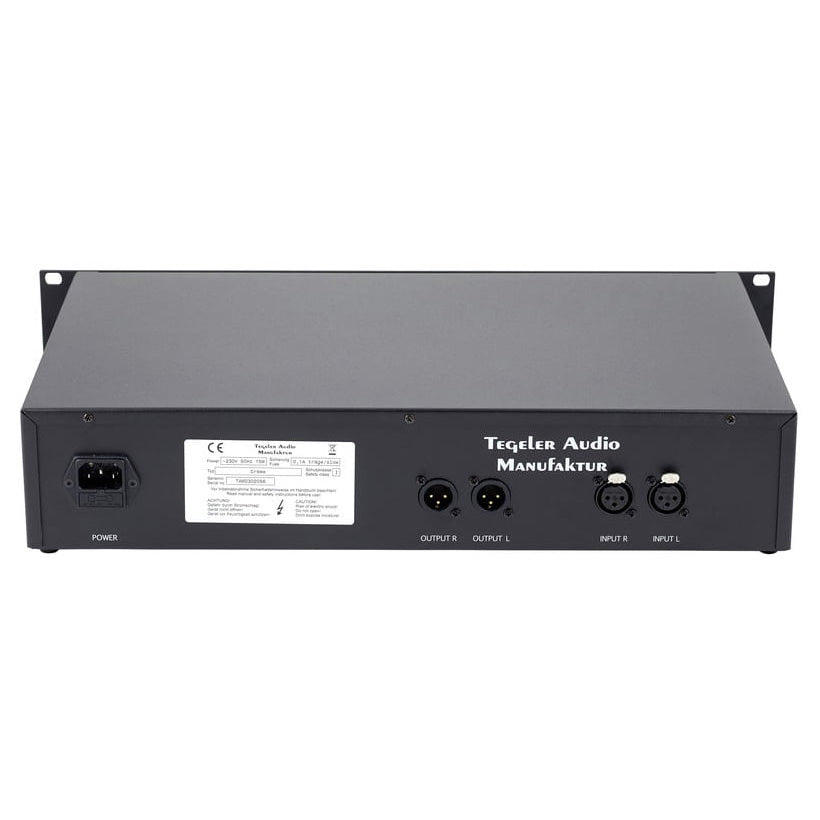

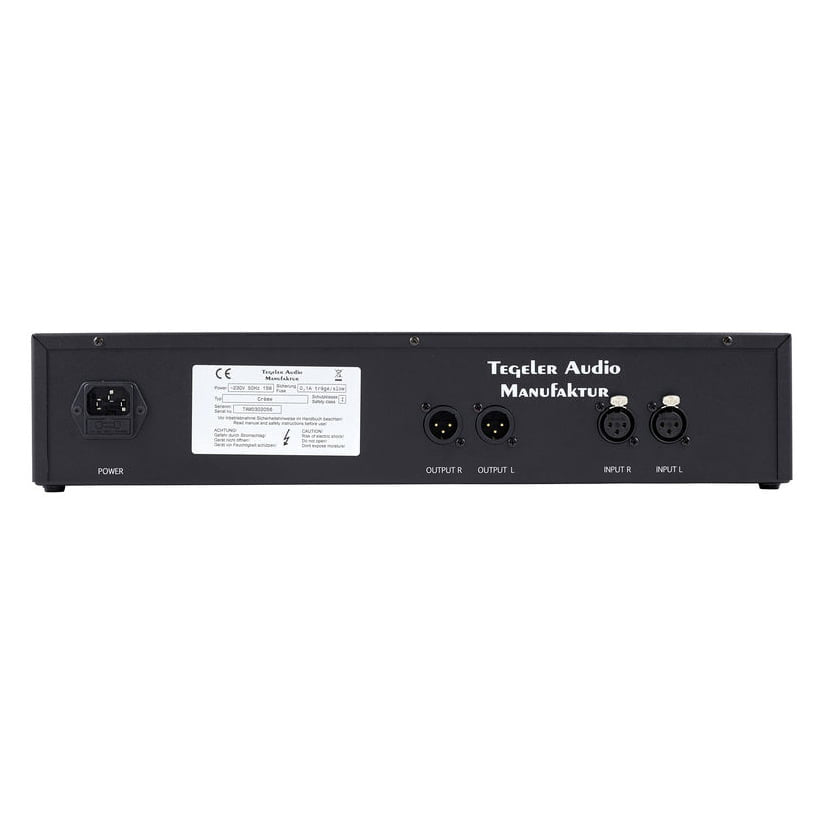

• Balanced XLR inputs and outputs
• Internal power supply with high-quality toroidal transformer
• Dimensions (H x W x D): 88.4 (2U) x 483 x 250 mm

Equalizer features:

• Passive EQ after the Pultec principle
• Bass boost frequencies: 20-30-50-70-120-160 Hz
• Bass boost level: 0-5 dB Switchable
• Treble boost frequencies: 6-8-10-12-16-20 kHz
• Treble boost level: 0-5 dB switchable

Bus compressor features:

• Low-cut filter: 60-120 Hz
• Attack: 0.1-0.3-1-3-10-30 ms
• Release: 100-300-600 ms 1.2 s auto
• Ratio: 1.5-2-4-10
• Potentiometers with increment markings
• Frequency response: 20 - 40;000 Hz +/- 1.5 dB
