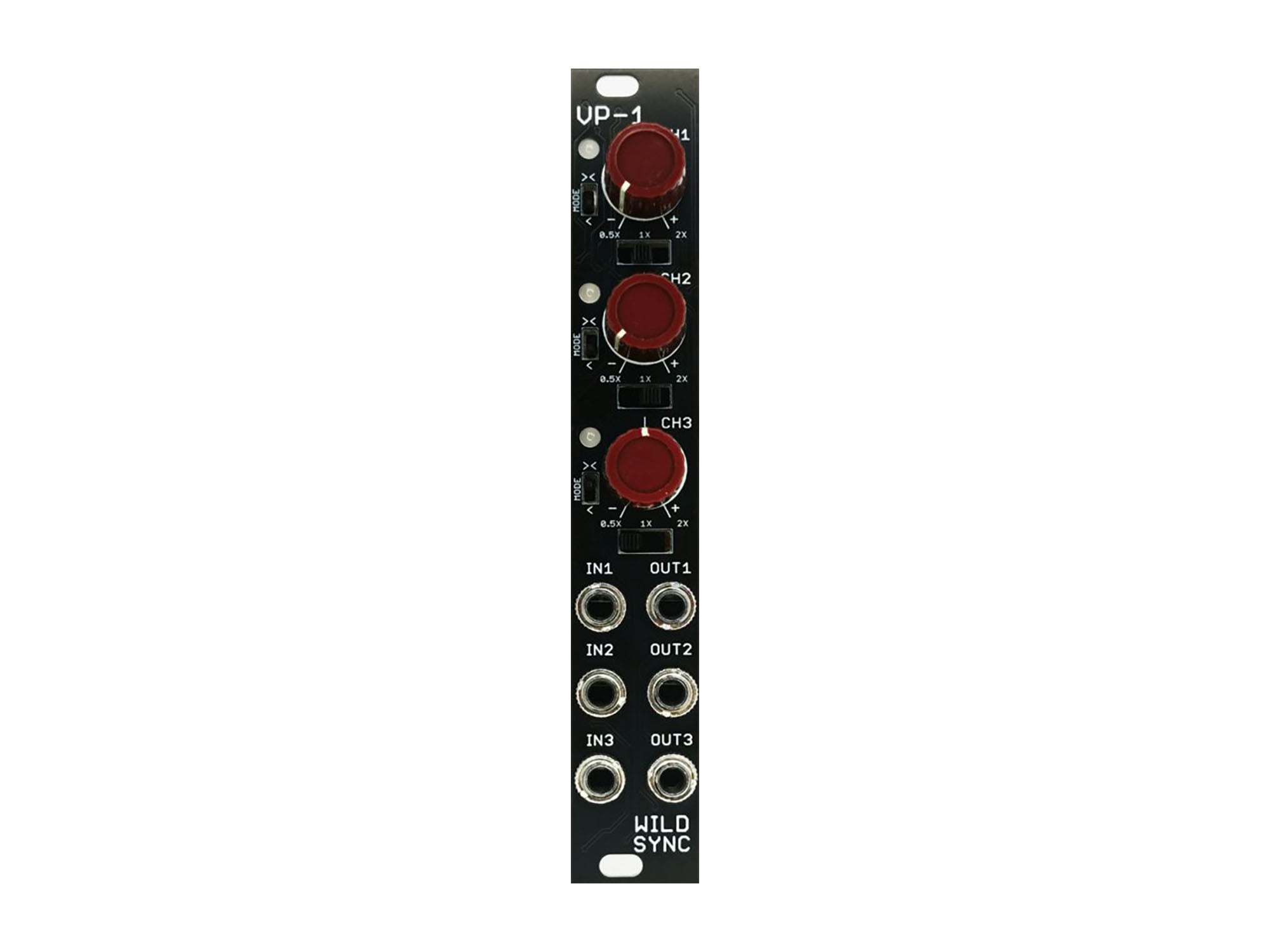

Wildsync VP-1 – multifunction CV/audio processor with 3 channels for attenuation, inversion, amplification, and mixing
VP-1 by Wildsync is a versatile signal processor module designed for Eurorack systems. It features three independent channels capable of processing both audio and control voltage (CV) signals, offering attenuation, phase inversion, amplification, and mixing functions in a compact 4 HP form factor.
Each channel includes:
- Gain/attenuation control and signal phase inversion
- Option to use external input or internal reference voltage (offset)
- Bipolar LED for visual feedback of signal polarity and amplitude
Wildsync VP-1 Key features
- Three fully independent CV/audio processing channels
- Functions as attenuator, inverter, amplifier, and mixer
- Internal reference voltages for offset generation
- Summing output for combining channels
- Bipolar LED indication per channel for polarity and signal level
Wildsync VP-1 Specifications
- Module type: Attenuator / Amplifier / Inverter / Mixer
- Number of channels: 3
- Inputs: Audio and CV
- Outputs: Individual + summed
- LED indication: Bipolar LED on each channel
- Width: 4 HP
- Depth: 22 mm
- Power consumption: +12V 38 mA, -12V 33 mA
- Panel material: Aluminum
- Color: Black
