Shure MV7X

Shure MV7X – dynamic microphone with XLR output only, built on the housing known from the MV7, with no USB section and no digital processing. The design runs on a dynamic cardioid capsule with Voice Isolation Technology, with no internal DSP and no A/D converter. The signal reaches the XLR output in purely analog form, without any software or USB drivers in the path, making the MV7X a practical choice for engineers who already own an audio interface, mixer, or recording chain and don't need an extra layer of digital processing built into the microphone itself. The rugged, all-metal housing with an adjustable yoke on a 5/8"-27 thread gives repeatable positioning in a podcast studio or on a recording set.

An analog signal with no DSP in the way

No onboard digital processing means all EQ, compression, and noise reduction happens at the interface stage or in the DAW, fully under the engineer's control rather than baked into the microphone's factory settings. That approach removes any dependency on USB drivers or a companion app, which matters when building a recording chain that's independent of a specific operating system or integrating with a preamp already in place.

Cardioid pickup in an untreated room

The directional cardioid pattern provides roughly 25 dB of attenuation for sound arriving from behind the capsule, limiting the buildup of wall and ceiling reflections in rooms without acoustic treatment. A frequency response rolled off below 50 Hz naturally cuts low-frequency air conditioning rumble, desk vibration, and excessive proximity effect, giving a warmer, less muddy vocal tone without needing a high-pass filter at the mixing stage. The built-in windscreen further tames plosives without a separate pop filter.

KEY FEATURES

• Dynamic cardioid capsule with Voice Isolation Technology
• XLR output only, fully analog signal path, no DSP
• No phantom power required
• Built-in windscreen for plosive control
• Rugged all-metal construction with an adjustable yoke
• 5/8"-27 mounting thread with a 3/8" adapter included

TECHNICAL SPECIFICATIONS

• Transducer type: dynamic (moving coil)
• Polar pattern: cardioid
• Frequency response: 50 Hz - 16,000 Hz
• XLR sensitivity (minimum gain, flat mode): -55 dBV/Pa at 1 kHz
• XLR output impedance: 252 Ω at 1 kHz

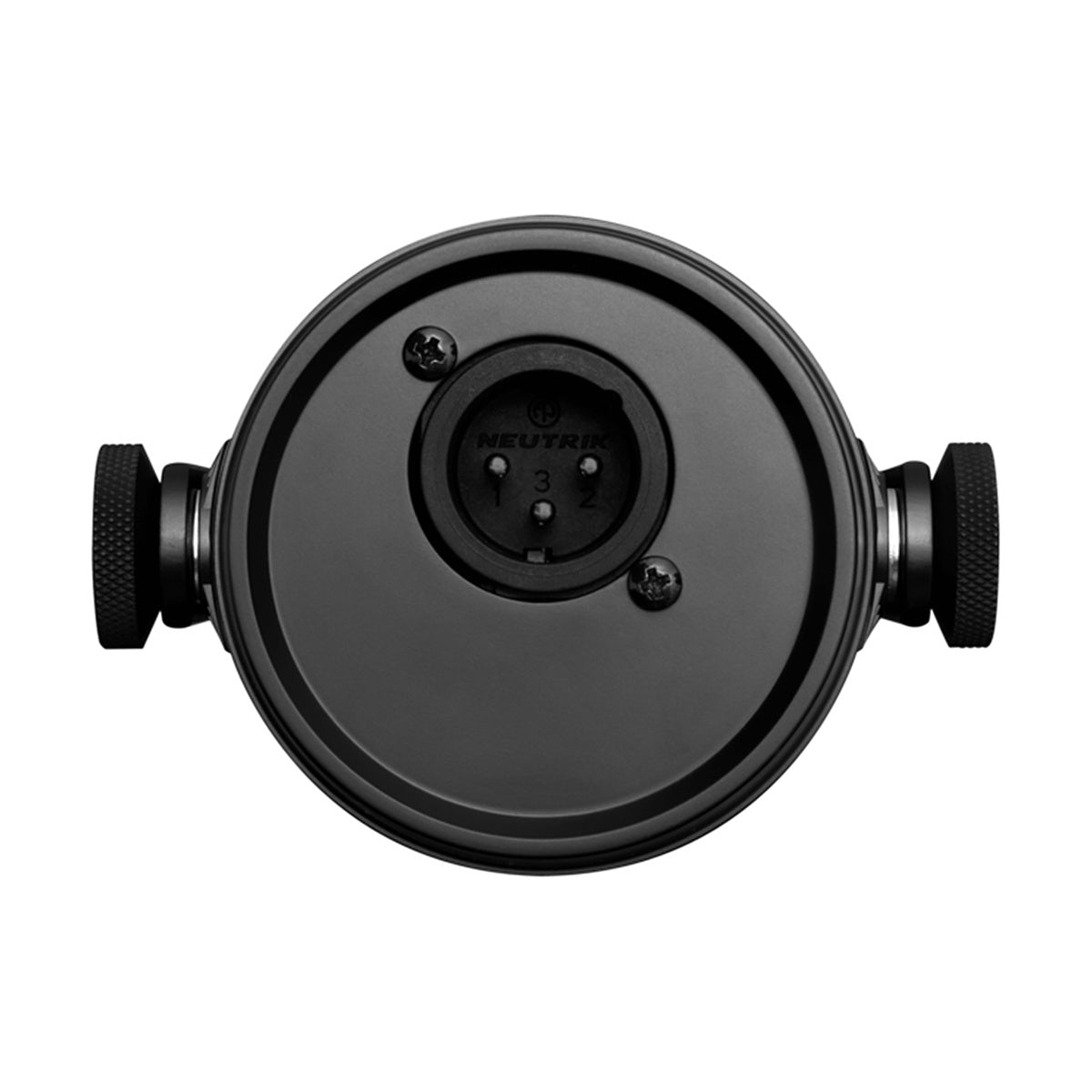

• Connector: XLR (3-pin, passive)
• Mount: 5/8"-27 thread on an adjustable yoke
• Net weight: 0.55 kg
• Power: none required (dynamic microphone)
